Tensile and Flexural Strength

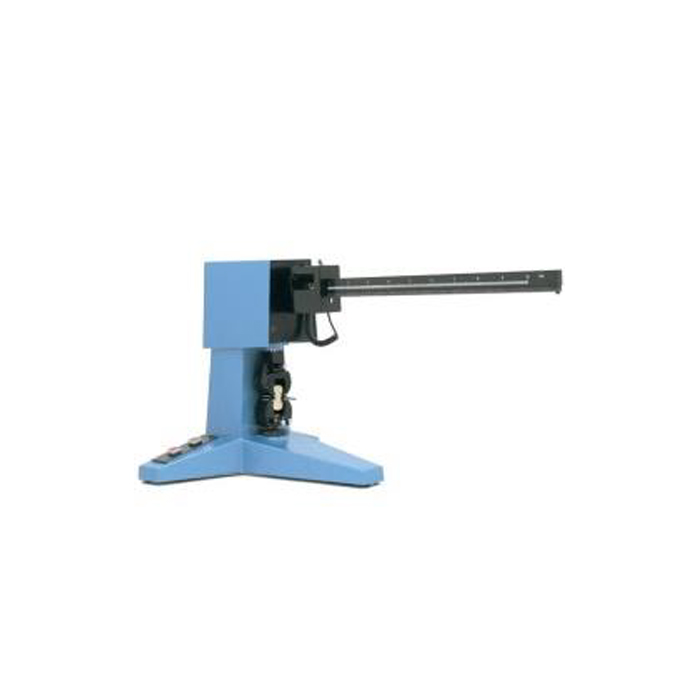

Tensile Strength Tester (Electrically Operated)
BS12
The instrument employs a friction free, accurate, double lever system, the load being applied by means of sliding weight on the top lever. The capacity of the units is 900 kgs. After fixing the briquette in the jaws, the machine is switched on. The sliding weight slides over the calibrated lever thus applying tension to the specimen. A micro switch fitted instantly stop the machine on failure of the briquette and on failure the tensile load is accurately 0.5kg. By means of a marker provided on the sliding weight to its zero position. Suitable for operation on 230 V, 50 cycles, Single Phase, A.C. supply. Supplied complete with one brass briquette mould and one base plate.
The instrument employs a friction free, accurate, double lever system, the load being applied by means of sliding weight on the top lever. The capacity of the units is 900 kgs. After fixing the briquette in the jaws, the machine is switched on. The sliding weight slides over the calibrated lever thus applying tension to the specimen. A micro switch fitted instantly stop the machine on failure of the briquette and on failure the tensile load is accurately 0.5kg. By means of a marker provided on the sliding weight to its zero position. Suitable for operation on 230 V, 50 cycles, Single Phase, A.C. supply. Supplied complete with one brass briquette mould and one base plate.

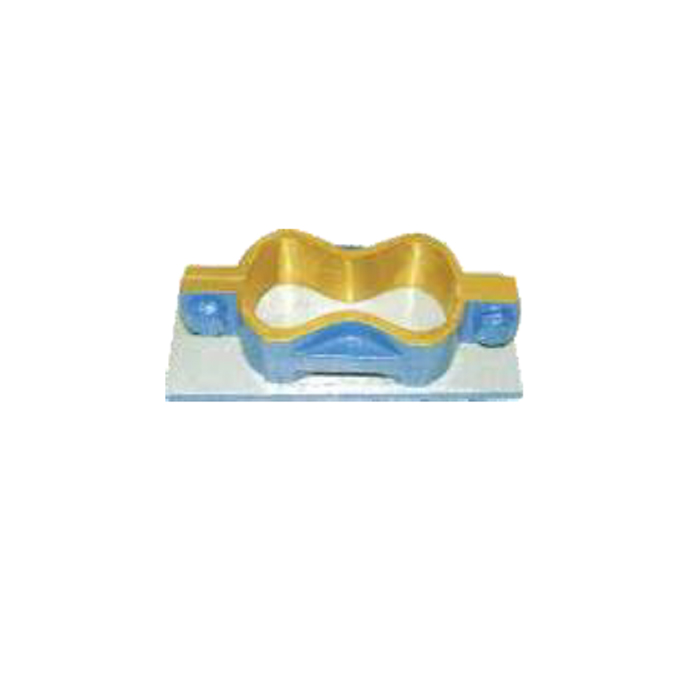

Briquette Mould (Single)
IS 269 1958, BS12
Specification:
For casting of cement briquettes for tensile strength tests. It is a two part split mould made of gun metal. Two thumb screws facilitate easy and quick assembling and dismantling of the mould. The minimum cross section of the briquettes cast is 25.4 mm x 25.4 mm. Supplied complete with a steel base plate.
Specification:
For casting of cement briquettes for tensile strength tests. It is a two part split mould made of gun metal. Two thumb screws facilitate easy and quick assembling and dismantling of the mould. The minimum cross section of the briquettes cast is 25.4 mm x 25.4 mm. Supplied complete with a steel base plate.

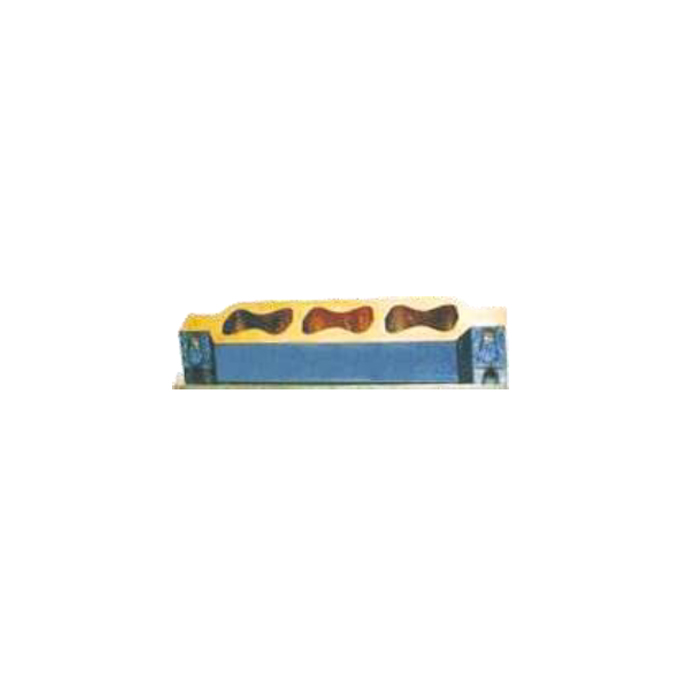

Briquette Mould (Three Gang)
IS 269 1958, Bs12
Specifications:
For casting three cement briquettes at a time for the tensile strength test on cement.
Specifications:
For casting three cement briquettes at a time for the tensile strength test on cement.

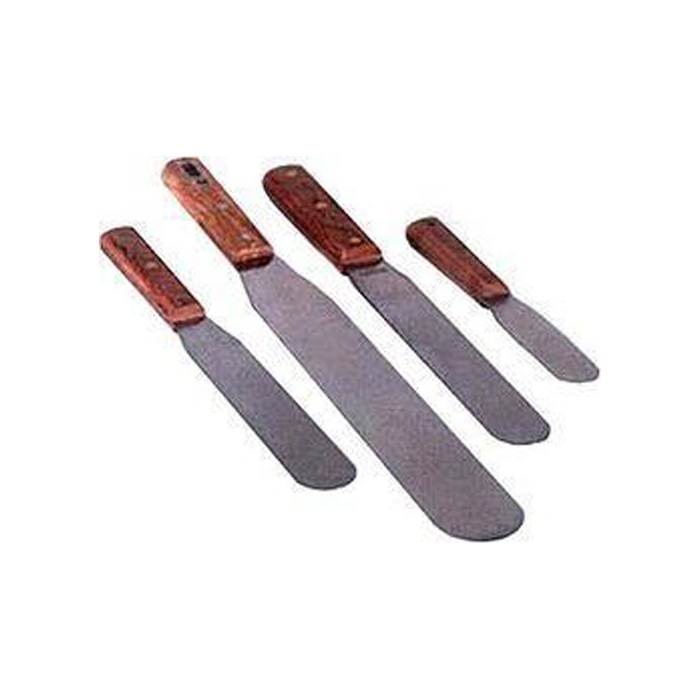

Standard Spatula
IS 4031, 269, BS 12
This is for use while casting a cement briquette.
Specification:
The standard spatula consists of a steel blade, of a special shape. A wooden handle is fixed to the stem of blade. The weight does not exceed 340 gms.
This is for use while casting a cement briquette.
Specification:
The standard spatula consists of a steel blade, of a special shape. A wooden handle is fixed to the stem of blade. The weight does not exceed 340 gms.
