Moulding & Sample Preparation

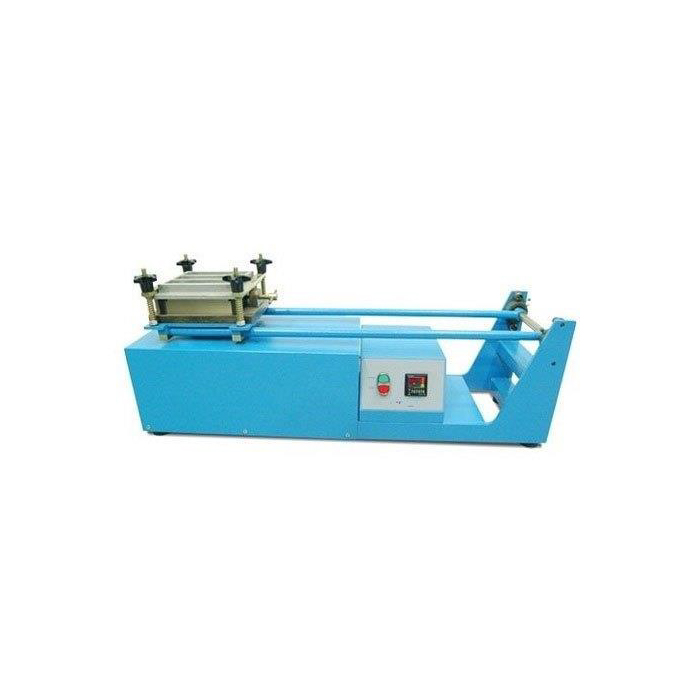

Jolting Apparatus
IS 1727 1967, IS 4031 1968, ASTM C 394, C 64
For making standard rectangular specimens of 40 x 40 x 160mm. of Portland and pozzolana cement mortar for determining the transverse strength.
Specification:
The jolting apparatus consists of a rectangular table rigidly connected by two support arms to a spindle at a horizontal distance of 800 mm from the centre of the table. There is a projecting lug with a plane face on the upper face of the table beneath which is a stop with a rounded upper surface. The table can be raised and allowed to fall freely on the stop by a cam which is connected to a motor and gearbox through a V-belt an pulleys. The cam rotates at a rate of 60 Rev/Min. A stroke counter fitted with micro-switch is provided which stops the machine after 60 Jolts. Locating pins are provided for mounting the mould compartments on the table. The mould surmounted by the hopper can be clamped rigidly to the table. Supplied complete with mould and hopper. Suitable for operation on 230 Volts, Single Phase, A.C. Supply. A Digital Preset Counter can be supplied at an extra cost.
For making standard rectangular specimens of 40 x 40 x 160mm. of Portland and pozzolana cement mortar for determining the transverse strength.
Specification:
The jolting apparatus consists of a rectangular table rigidly connected by two support arms to a spindle at a horizontal distance of 800 mm from the centre of the table. There is a projecting lug with a plane face on the upper face of the table beneath which is a stop with a rounded upper surface. The table can be raised and allowed to fall freely on the stop by a cam which is connected to a motor and gearbox through a V-belt an pulleys. The cam rotates at a rate of 60 Rev/Min. A stroke counter fitted with micro-switch is provided which stops the machine after 60 Jolts. Locating pins are provided for mounting the mould compartments on the table. The mould surmounted by the hopper can be clamped rigidly to the table. Supplied complete with mould and hopper. Suitable for operation on 230 Volts, Single Phase, A.C. Supply. A Digital Preset Counter can be supplied at an extra cost.

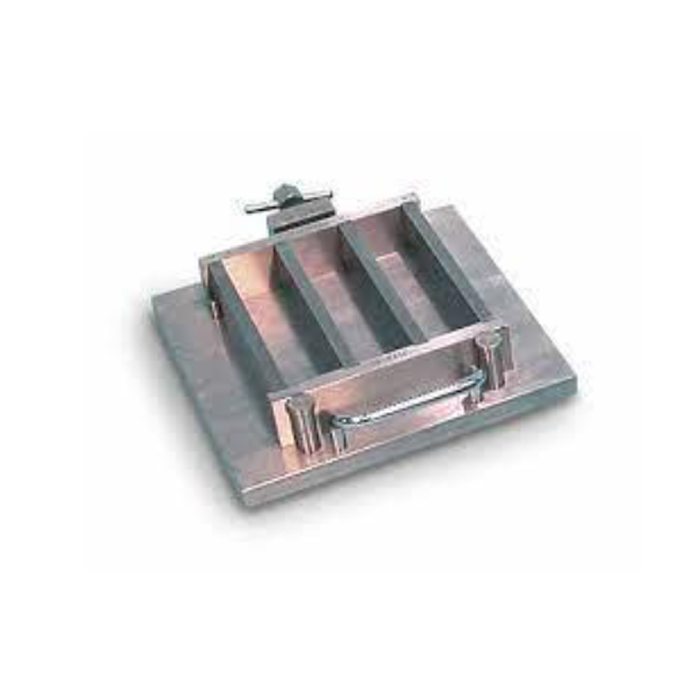

Prism Mould Three Gang
IS 1727 1967, IS 4031 1968, ASTM C 394, C 64
Specification:
It is supplied complete with base. All parts are marked with the identification number for correct assembly. Each mould is individually verified in the dimensional tolerances, hardness, squareness, flatness & roughness. Size: 40.1 X 40 X 160 mm
Specification:
It is supplied complete with base. All parts are marked with the identification number for correct assembly. Each mould is individually verified in the dimensional tolerances, hardness, squareness, flatness & roughness. Size: 40.1 X 40 X 160 mm

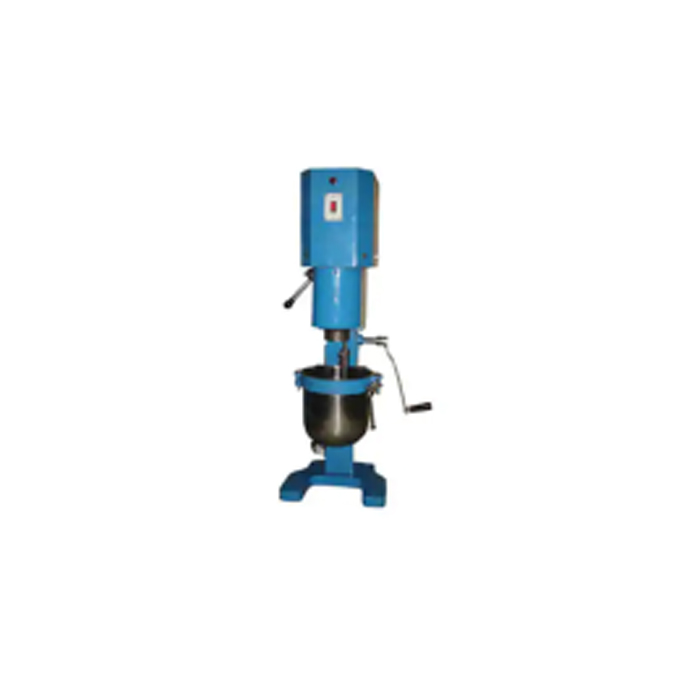

Mortor Mixer
IS 4031, 1727 & BS 3892
It is used for mixing cement pastes, mortars and pozzolana.
Specifications:
The apparatus consists of an epicyclical type stainless steel paddle imparting both planetary and revolving motion, by means of gears. It has two speeds of 140 + 5 R.P.M. and 285 +10 R.P.M. With planetary motions of approximately 62 R.P.M, +5 R.P.M. and 125 R.P.M. +/- 10 R.P.M. Respectively. The stand of the mixer has arrangement to raise or lower the bowl. Complete with stainless steel bowl of about six liters capacity. Suitable for operation on 230 V, 50 cycles, Single Phase A.C, Supply.
It is used for mixing cement pastes, mortars and pozzolana.
Specifications:
The apparatus consists of an epicyclical type stainless steel paddle imparting both planetary and revolving motion, by means of gears. It has two speeds of 140 + 5 R.P.M. and 285 +10 R.P.M. With planetary motions of approximately 62 R.P.M, +5 R.P.M. and 125 R.P.M. +/- 10 R.P.M. Respectively. The stand of the mixer has arrangement to raise or lower the bowl. Complete with stainless steel bowl of about six liters capacity. Suitable for operation on 230 V, 50 cycles, Single Phase A.C, Supply.

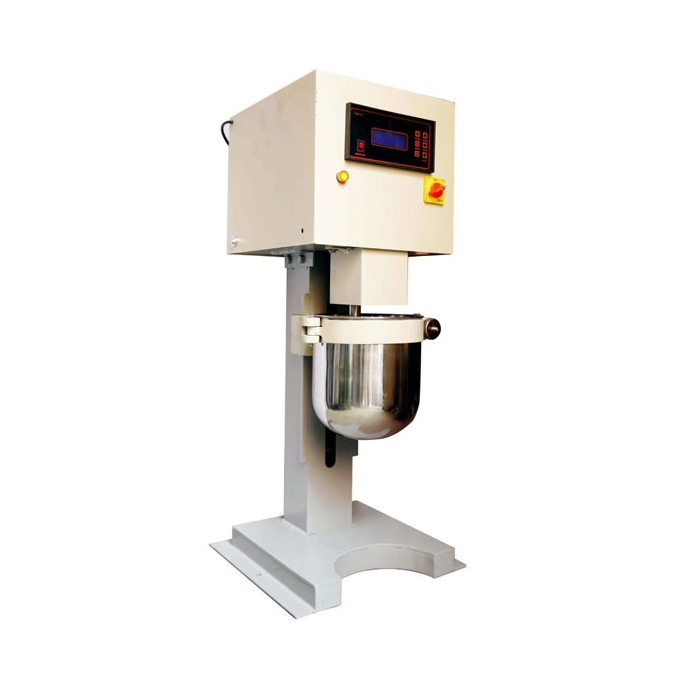

Fully Automatic Mortar Mixer
EN 196-1, 196-3, 413-2, 459-2, 480-1, 1015-2, 12617-4; ASTM C187, C305; AASHTO T129, T131, T162
The mixer has been designed to mix mortars and cement pastes primarily to the requirements of standards. The mixing paddle has a planetary motion and is driven by a motor with a microprocessor based speed and preset programs to meet all listed EN and ASTM standards, custom designed programs or manual mode. The mode button is used for the fast selection of different programs. The mixing paddle revolves at a rate of 140 rpm.
with a planetary motion of 62 rpm. in low speed. In high speed, the paddle revolves at the rate of 285 rpm. with a planetary motion of 125 rpm. An automatic sand dispenser is supplied with the machine and the sand is automatically discharged. Custom design allows 6 programs to be set by the operator, where the motor speed, sand dispenser position and duration of the mix can be set. For the mix where the motor speed is selected as zero, the bowl can be lowered without interrupting the rest of the program. On the display the user can see the mix time and the machine is equipped with lamp in order to warn the user for critical time periods.
The mixer has been designed to mix mortars and cement pastes primarily to the requirements of standards. The mixing paddle has a planetary motion and is driven by a motor with a microprocessor based speed and preset programs to meet all listed EN and ASTM standards, custom designed programs or manual mode. The mode button is used for the fast selection of different programs. The mixing paddle revolves at a rate of 140 rpm.
with a planetary motion of 62 rpm. in low speed. In high speed, the paddle revolves at the rate of 285 rpm. with a planetary motion of 125 rpm. An automatic sand dispenser is supplied with the machine and the sand is automatically discharged. Custom design allows 6 programs to be set by the operator, where the motor speed, sand dispenser position and duration of the mix can be set. For the mix where the motor speed is selected as zero, the bowl can be lowered without interrupting the rest of the program. On the display the user can see the mix time and the machine is equipped with lamp in order to warn the user for critical time periods.

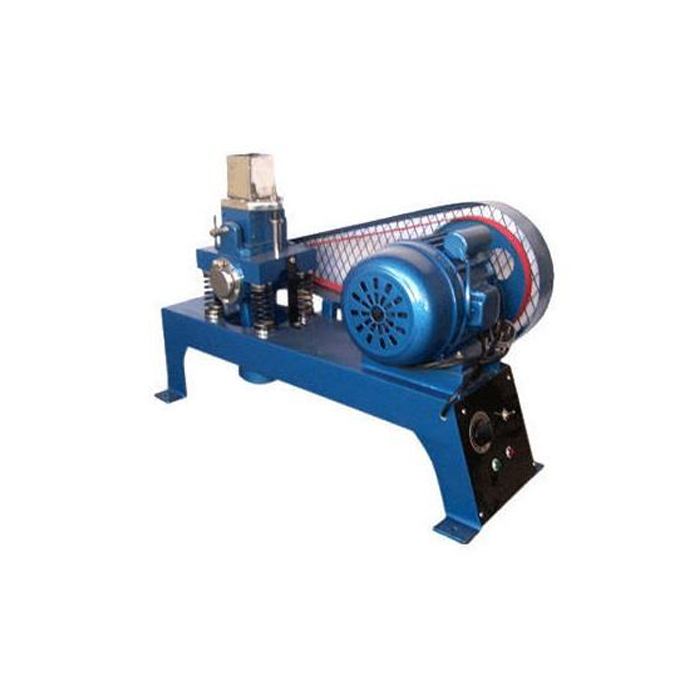

Vibrating Machine
IS 4031 1968, IS 1344 1959, BS 4550.
Concrete moulds are easily cast by using a tamping bar or a vibrating table. However air trapped in cement mortar paste can not be thus removed while casting cement mortar moulds. Easy method is to impart greater vibrating of lesser amplitude to the mould while casting This is achieved in a vibrating machine.
Vibrating machine is used for the preparing of mortar cubes for the determination of compression strength of ordinary and rapid hardened Portland cement, low heat Portland cement, Portland blast furnace cement and high alumina cements.
Specifications:
The machine consists of a vibrating frame assembly and an electric motor mounted on a sturdy base. The complete frame assembly consists of a vice to hold a 70.6 mm cube mould and two studs threaded at top and a hopper to feed the sample in the mould. This assembly is supported on four springs and has an in built rotating shaft which rotates eccentrically and thus imparts vibrations to the entire frame. A balance weight is an integral bottom part of the frame. The centre of gravity of the assembly is brought to the centre of the eccentric shaft within a distance of 25 mm below it. The electric motor drives the shaft of the frame and thus imparts required vibration to the moulds. The frequency of vibration is 12000 +/- 400 Vibration Per Minute. Supplied complete with on 70.6 mm Cube Mould with loose base plate, a time switch 0-5mins x 1mm. Spares: Set of springs, belt and belt guard. Optional: Digital Preset Timer can be supplied at an extra cost.
Concrete moulds are easily cast by using a tamping bar or a vibrating table. However air trapped in cement mortar paste can not be thus removed while casting cement mortar moulds. Easy method is to impart greater vibrating of lesser amplitude to the mould while casting This is achieved in a vibrating machine.
Vibrating machine is used for the preparing of mortar cubes for the determination of compression strength of ordinary and rapid hardened Portland cement, low heat Portland cement, Portland blast furnace cement and high alumina cements.
Specifications:
The machine consists of a vibrating frame assembly and an electric motor mounted on a sturdy base. The complete frame assembly consists of a vice to hold a 70.6 mm cube mould and two studs threaded at top and a hopper to feed the sample in the mould. This assembly is supported on four springs and has an in built rotating shaft which rotates eccentrically and thus imparts vibrations to the entire frame. A balance weight is an integral bottom part of the frame. The centre of gravity of the assembly is brought to the centre of the eccentric shaft within a distance of 25 mm below it. The electric motor drives the shaft of the frame and thus imparts required vibration to the moulds. The frequency of vibration is 12000 +/- 400 Vibration Per Minute. Supplied complete with on 70.6 mm Cube Mould with loose base plate, a time switch 0-5mins x 1mm. Spares: Set of springs, belt and belt guard. Optional: Digital Preset Timer can be supplied at an extra cost.

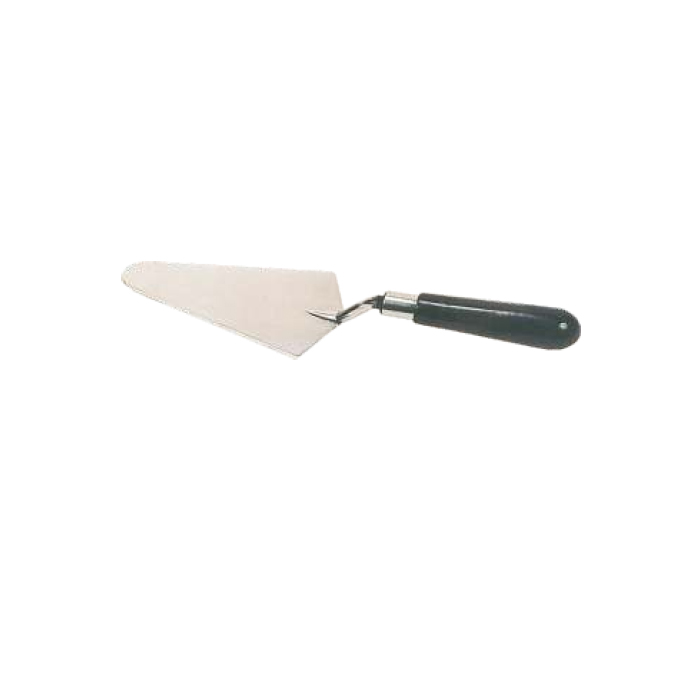

Gauging Trowel
BS 12, IS 4031
Specification:
Weight approximately 210 gms.. Best quality with hard wood handle blade length 200mm.
Specification:
Weight approximately 210 gms.. Best quality with hard wood handle blade length 200mm.
