Non Destructive Testing

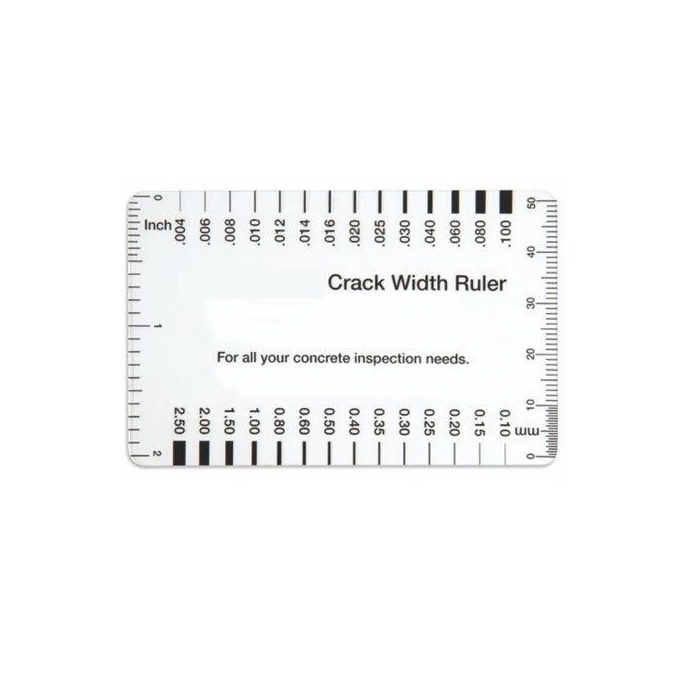

Crack Width Ruler
This simple gauge has been designed to provide
inspectors with a low cost alternative to a graduated
microscope for determining the width of a crack in a
concrete or other building materials.
Similar in size to a standard credit card, this transparent gauge is marked with a range of graded lines. Each line is a specified width. To use, position the gauge over the crack and identify which line is a similar width to the crack. Read off the width value.
Similar in size to a standard credit card, this transparent gauge is marked with a range of graded lines. Each line is a specified width. To use, position the gauge over the crack and identify which line is a similar width to the crack. Read off the width value.

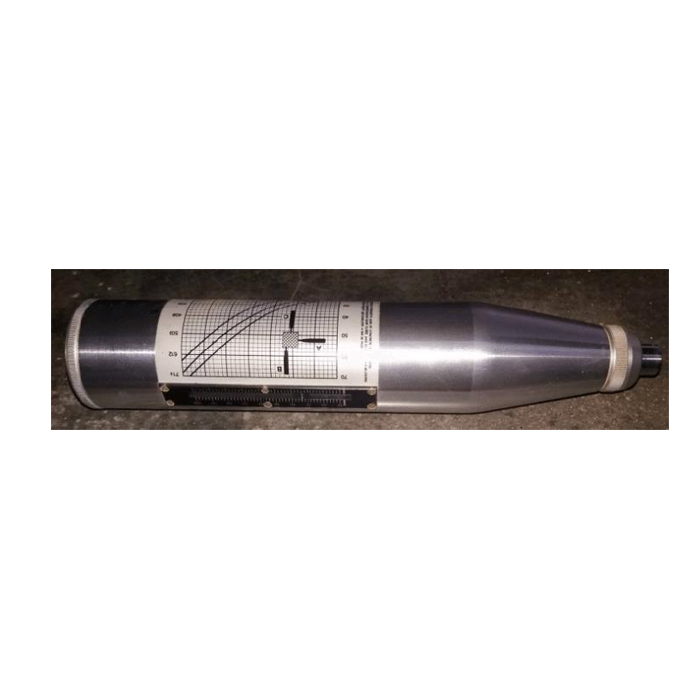

Concrete Test Hammer (Schmidt Hammer) N Type
EN 12504-2, 13791, ASTM C 805, BS 1881:202,
NF P18-417, DIN 1048, UNI 9189
The quality of concrete is mainly judged by its compressive strength directly af fecting the load- bearing capacity and durability of concrete structures. concrete test hammer (Schmidt Hammer N type) is used to measure the compressive strength characteristics of hardened concrete non-destructively, control uniform concrete quality and detect weak spots in the concrete. The test object should have a minimum thickness of 100 mm.
The quality of concrete is mainly judged by its compressive strength directly af fecting the load- bearing capacity and durability of concrete structures. concrete test hammer (Schmidt Hammer N type) is used to measure the compressive strength characteristics of hardened concrete non-destructively, control uniform concrete quality and detect weak spots in the concrete. The test object should have a minimum thickness of 100 mm.

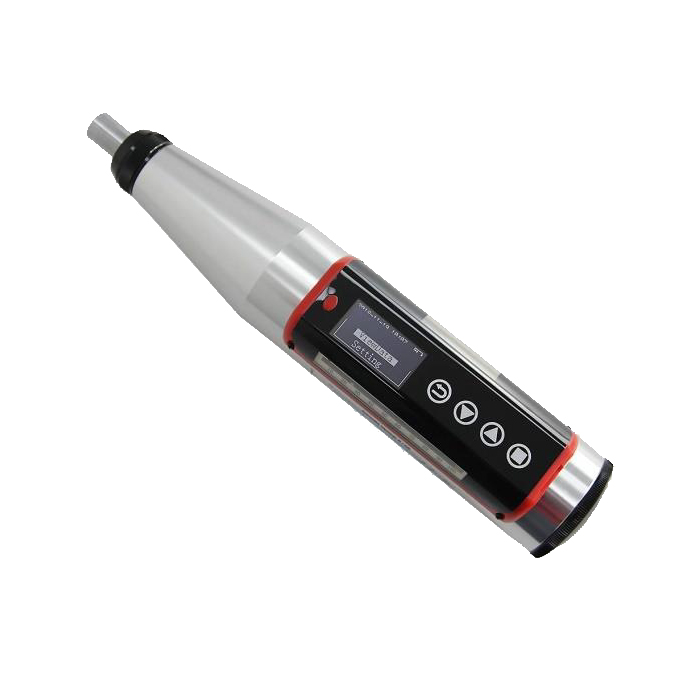

Electronic Concrete Test Hammer (Schmidt Hammer)
Trait:
- Center rod is made from imported material, high accuracy and durable resistance.
- The high polymer material in order to perfect protect instrument from damage and extend use life.
- Pointer slider is outside structure, its friction can be balance well and easy to be adjusted so that we can make sure that the instrument is accurate. Compared with other suppliers in the line of business, the product is more accuracy, good quality, and best price and longer use life.

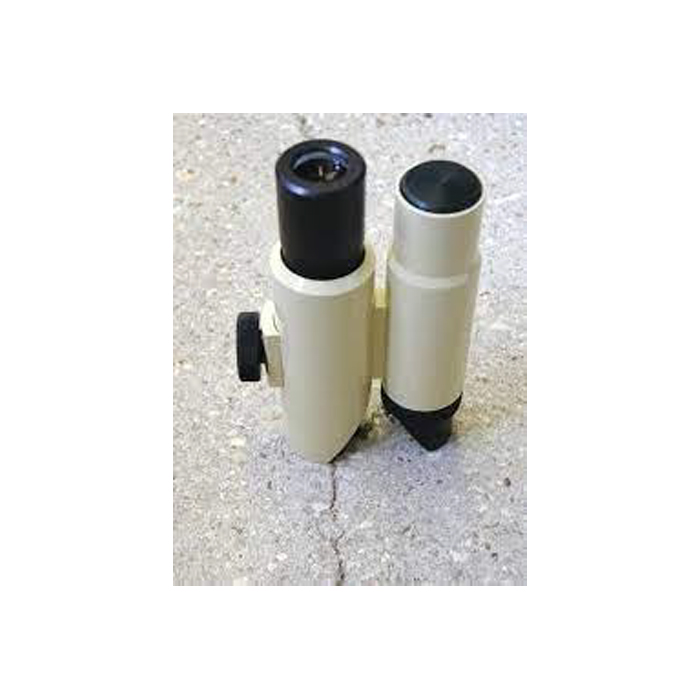

Crack Microscope
Crack microscope is a high definition device which is used for measuring crack widths
both in concrete and other structures like masonry walls. Consists of an adjustable lamp
unit and a knob for focusing the image. The 360o turning ability of the eyepiece enables the
alignment with the direction of the crack or pitch subject to examination. The battery
operated microscope has 40x magnification and 4 mm measuring range with 0.02 mm
subdivisions.
