Sieve Shaker

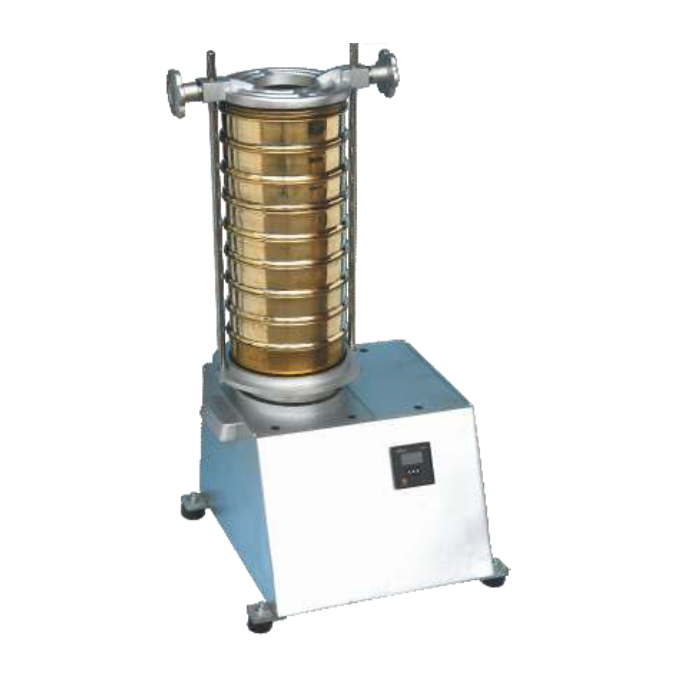

Sieve Shaker 'Rotap'
Specification :
To make process of sieving simpler and quicker, Rotap sieve shaker is useful , this produces circular shaking of the sieves. At the same time the sieves are tapped. The mechanism for imparting circular action and topping is oil immersed in a tank and in motorized. The shaker can accommodate upto 7 nos. Sieves of dia 150mm or 200mm. Suitable operation of 230 V A.C. Single Phase.
To make process of sieving simpler and quicker, Rotap sieve shaker is useful , this produces circular shaking of the sieves. At the same time the sieves are tapped. The mechanism for imparting circular action and topping is oil immersed in a tank and in motorized. The shaker can accommodate upto 7 nos. Sieves of dia 150mm or 200mm. Suitable operation of 230 V A.C. Single Phase.

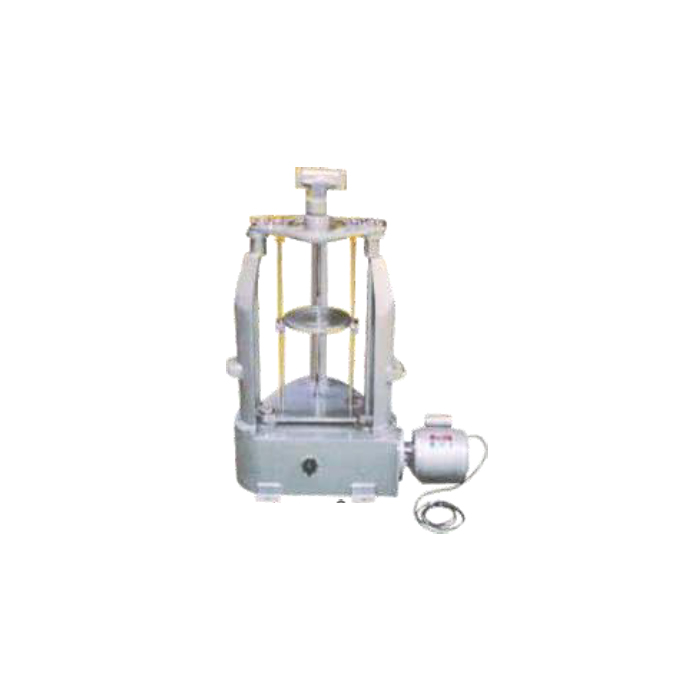

Sieve Shaker 'Gyratory'
Specification :
Carries upto 7 sieves of 150 or 200 mm diameter. The shaker is driven by a 1/4 H.P. Motor through a reduction gear immersed in oil. The sieve table does not rotate but is inclined from the vertical axis and the direction on inclination charges progressively in clockwise direction. If the stop pin below the table is removed, the shaker can have a rotary motion. In addition to this gyratory motion of the table, there is an upward and downward movement ensuring that each square cm of the sieve is utilized. A pair of rods and a holder can be fixed on the top of the upper most sieve, and thus the sieve set in firmly held. Suitable for operation from 230 V 50 Hz, Single phase A.C. supply.
a) Adopter for 300 mm dia. sieve available at extra cost
b) Adopter for 450 mm dia. sieve available at extra cost
Carries upto 7 sieves of 150 or 200 mm diameter. The shaker is driven by a 1/4 H.P. Motor through a reduction gear immersed in oil. The sieve table does not rotate but is inclined from the vertical axis and the direction on inclination charges progressively in clockwise direction. If the stop pin below the table is removed, the shaker can have a rotary motion. In addition to this gyratory motion of the table, there is an upward and downward movement ensuring that each square cm of the sieve is utilized. A pair of rods and a holder can be fixed on the top of the upper most sieve, and thus the sieve set in firmly held. Suitable for operation from 230 V 50 Hz, Single phase A.C. supply.
a) Adopter for 300 mm dia. sieve available at extra cost
b) Adopter for 450 mm dia. sieve available at extra cost

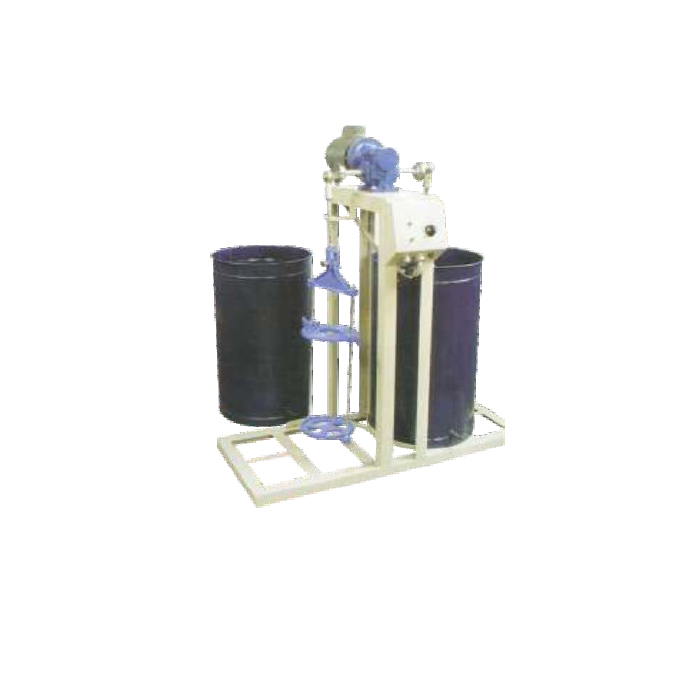

Wet Sieve Shaker
This is yodar type, motor driven sieve shaker for carrying out wet
sieve analysis of materials.
Specification :
Consists of a water reservoir and a holder for sieves, which can take up to 7 sieves of 150mm or 200mm diameter. Shaker is driven by a ¼ H.P. motor through a belt drive. Shaker mechanism moves the sieves up and down in the reservoir. The reservoir has a water out-let for draining out the used water. Suitable for operation 230 V A.C. Single Phase
Specification :
Consists of a water reservoir and a holder for sieves, which can take up to 7 sieves of 150mm or 200mm diameter. Shaker is driven by a ¼ H.P. motor through a belt drive. Shaker mechanism moves the sieves up and down in the reservoir. The reservoir has a water out-let for draining out the used water. Suitable for operation 230 V A.C. Single Phase

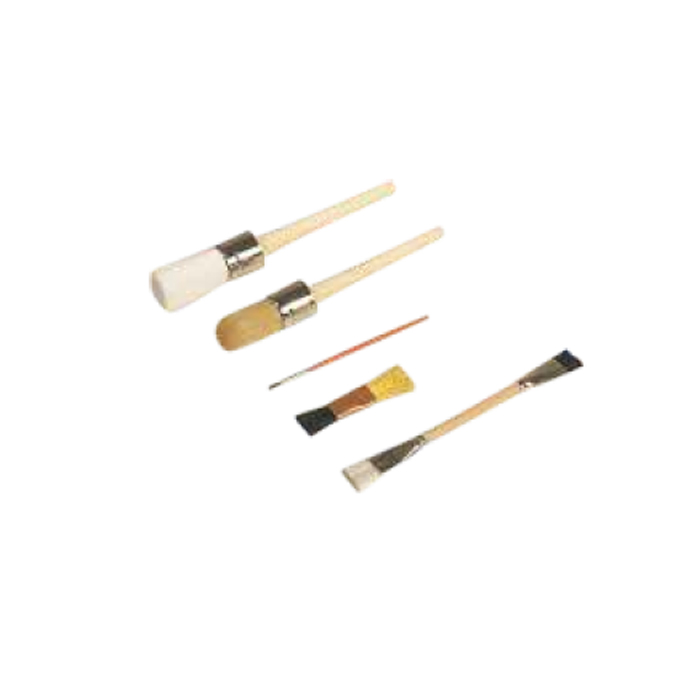

Sieve Brushes
BS 812
A. Bristle round brush 30 mm.
B. Nylon sieve brush 33 mm.
C. Soft Hair brush 3 mm dia.
D. Double ended brass & nylon bristle.
E. Double ended nylon sieve brush.
A. Bristle round brush 30 mm.
B. Nylon sieve brush 33 mm.
C. Soft Hair brush 3 mm dia.
D. Double ended brass & nylon bristle.
E. Double ended nylon sieve brush.
