Extraction & Sample Preparation

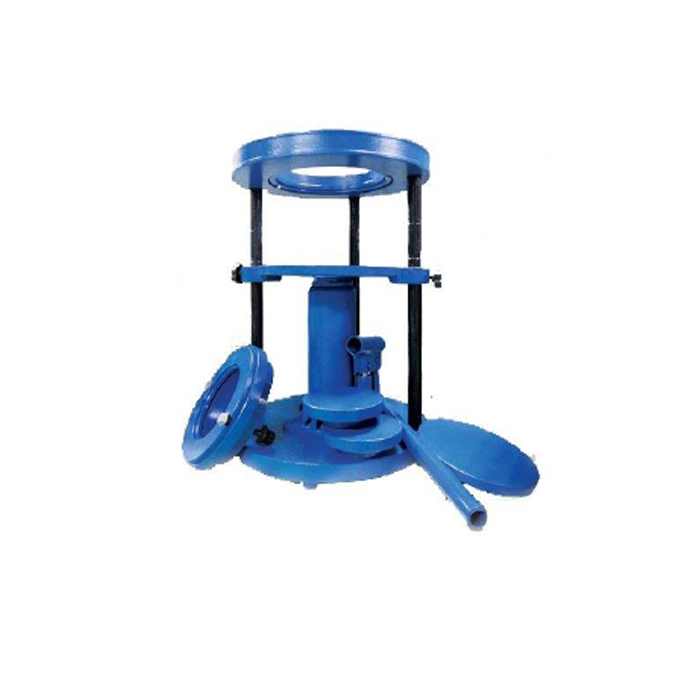

Universal Extruder Frame Hydraulic
The extractor frame is used for taking out soil samples compacted or undisturbed, from
100mm dia and 150mm dia cylinders such as Core Cutters, Proctor moulds,
C.B.R. moulds etc.
Specification:
It consists of a 50Kn capacity hand operated, hydraulic jack mounted on a suitable frame. Two plungers, one for 4"/100mm dia and the other of 6"/150mm dia moulds are supplied Height of thrust plate is adjustable.
Accessories
Set of plungers adaptors and thrust plates for 38mm, 50mm and 75mm dia specimen.
Note: Motorised model also available
Specification:
It consists of a 50Kn capacity hand operated, hydraulic jack mounted on a suitable frame. Two plungers, one for 4"/100mm dia and the other of 6"/150mm dia moulds are supplied Height of thrust plate is adjustable.
Accessories
Set of plungers adaptors and thrust plates for 38mm, 50mm and 75mm dia specimen.
Note: Motorised model also available

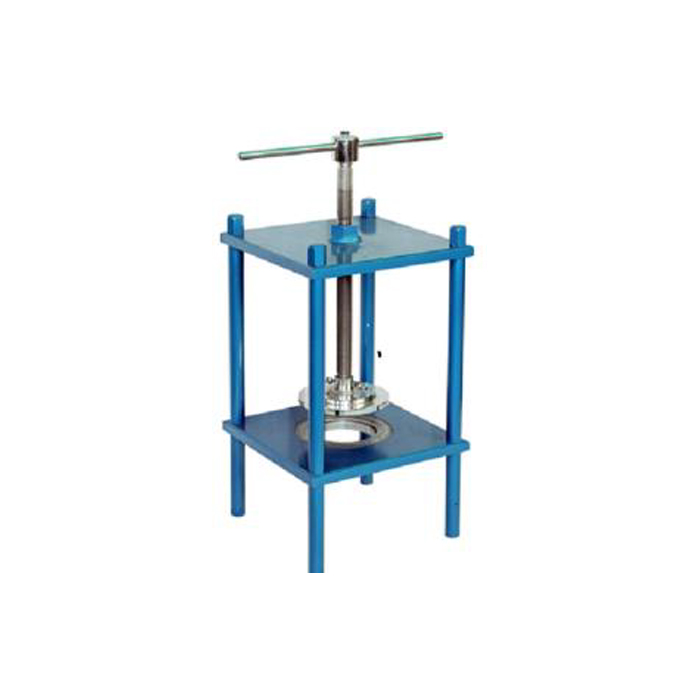

Extractor Frame Universal (Screw Type)
ASTM D 698 , BS 598:107
Designed to extract specimens from almost every type of sampling tube and mould used in solid engineering laboratory or in the field. It can be mounted vertically or horizontally as desired. It has an unique feature that three 38mm dia sample.
Specification:
Comprises of a frame designed for screw jack operation, one each of the adaptors for 38mm, 75mm, 100mm, 150mm dia meter specimens and a stand to obtain simultaneously three 38mm diameter samples from one 100mm diameter sample. The adaptor plate which slides along the slotted support can be claimed at any desired position by means of locking nuts. Besides this, the tube or mould can be held in position by raising the tube guides and held in position with locking screws. The lead screw movement can be stopped at any predetermined position by tightening the lead screw collar. Plunger adaptor for 200mm dia samples. Adaptor plate with 200mm dia hole and device to extract b number 38mm dia samples.
Designed to extract specimens from almost every type of sampling tube and mould used in solid engineering laboratory or in the field. It can be mounted vertically or horizontally as desired. It has an unique feature that three 38mm dia sample.
Specification:
Comprises of a frame designed for screw jack operation, one each of the adaptors for 38mm, 75mm, 100mm, 150mm dia meter specimens and a stand to obtain simultaneously three 38mm diameter samples from one 100mm diameter sample. The adaptor plate which slides along the slotted support can be claimed at any desired position by means of locking nuts. Besides this, the tube or mould can be held in position by raising the tube guides and held in position with locking screws. The lead screw movement can be stopped at any predetermined position by tightening the lead screw collar. Plunger adaptor for 200mm dia samples. Adaptor plate with 200mm dia hole and device to extract b number 38mm dia samples.

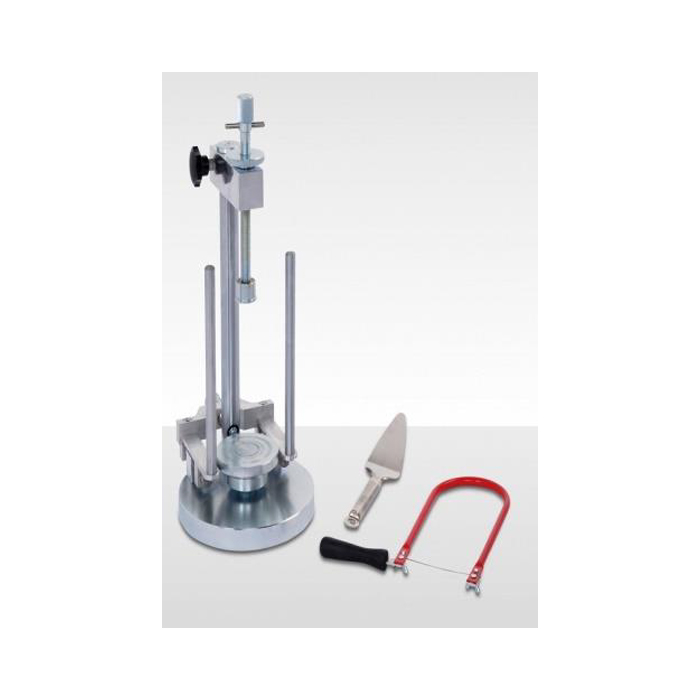

Soil Trimmer (Hand Operated)
For trimming various diameter specimen for triaxial and unconfined compression tests.
Specification:
The lower specimen grip is mounted on a disc which rotates freely. The soil sample is mounted on the lower specimen grip and the upper grip is firmly seated on top of the specimen. The vertical guide can be adjusted to control the depth of cut. While trimming the lower disc is rotated by hand. Supplied complete with a wire saw. Trimming knife, mounted on a support, can be adjusted horizontally as well as vertically to permit trimming of the specimen to the exact size of the ring. A guide supplied prevents over cutting. Complete with 38mm, 50mm, 75mm and 100mm dia specimen rings.
Specification:
The lower specimen grip is mounted on a disc which rotates freely. The soil sample is mounted on the lower specimen grip and the upper grip is firmly seated on top of the specimen. The vertical guide can be adjusted to control the depth of cut. While trimming the lower disc is rotated by hand. Supplied complete with a wire saw. Trimming knife, mounted on a support, can be adjusted horizontally as well as vertically to permit trimming of the specimen to the exact size of the ring. A guide supplied prevents over cutting. Complete with 38mm, 50mm, 75mm and 100mm dia specimen rings.
