Water Content & Dry Density of Soil

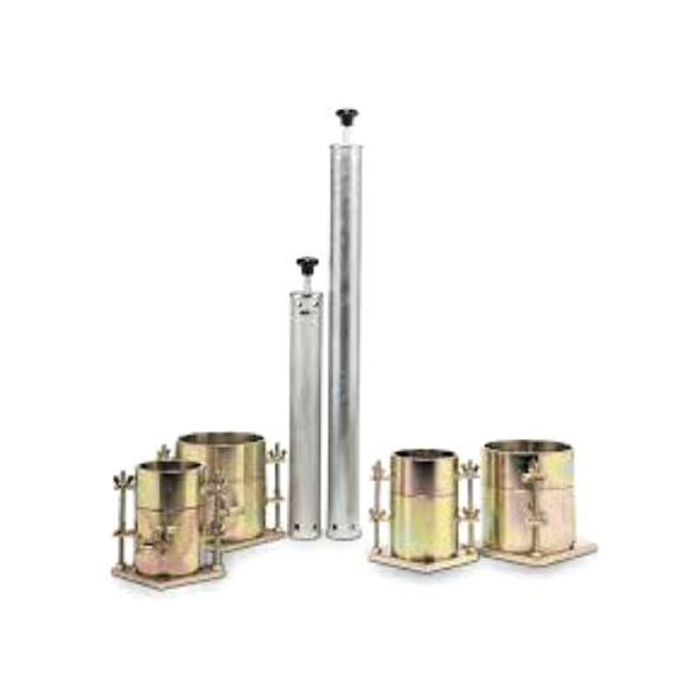

Standard Compaction Test
IS 2720, (PART-VII)
Specification :
The apparatus consists one each of compaction mould steel, 100 mm I.D. x 127.3mm height x 1000 cc. volume, complete with collar and base plate. Compaction Rammer is 2.6 kgs in weight x 310mm controlled fall.
BS 1377-4,1924-2
Specification :
The apparatus consists one each of compaction mould steel, 105mm I.D. x 115.5mm height x 1000 cc. volume, complete with collar and base plate. Compaction Rammer is 2.5 kgs. in weight x 300mm controlled fall. Face of the rammer is 50mm
ASTM D 558, D698
Specification :
The apparatus consists one each of compaction mould steel, 101.6mm I.D. x 116.4mm height x 944 cc. volume, complete with collar and base plate Compaction Rammer is 2.5 kgs. in weight x 12" controlled fall. Face of the rammer is 2"
Specification :
The apparatus consists one each of compaction mould steel, 100 mm I.D. x 127.3mm height x 1000 cc. volume, complete with collar and base plate. Compaction Rammer is 2.6 kgs in weight x 310mm controlled fall.
BS 1377-4,1924-2
Specification :
The apparatus consists one each of compaction mould steel, 105mm I.D. x 115.5mm height x 1000 cc. volume, complete with collar and base plate. Compaction Rammer is 2.5 kgs. in weight x 300mm controlled fall. Face of the rammer is 50mm
ASTM D 558, D698
Specification :
The apparatus consists one each of compaction mould steel, 101.6mm I.D. x 116.4mm height x 944 cc. volume, complete with collar and base plate Compaction Rammer is 2.5 kgs. in weight x 12" controlled fall. Face of the rammer is 2"

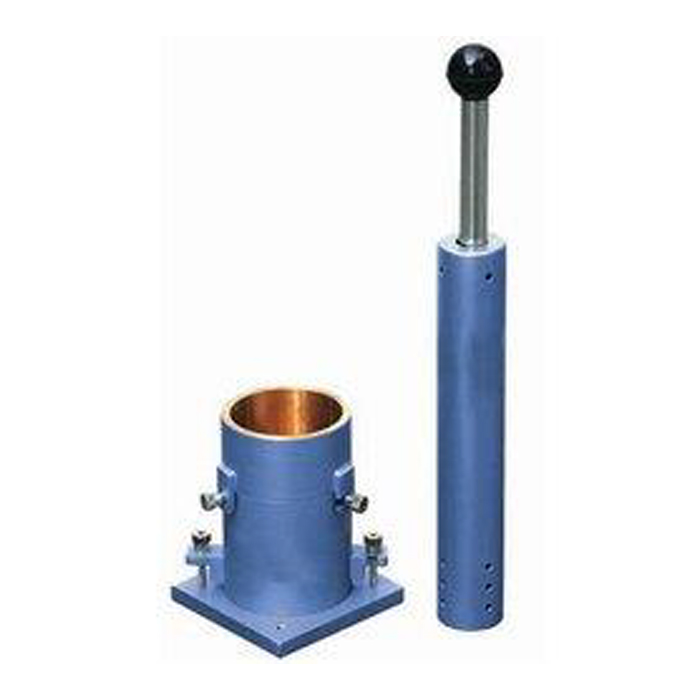

Heavy Compaction Test
ASTM D 558, D698
Specification
The apparatus consists one each of compaction mould steel, 152.4mmI.D. x 116.4mm height x 2124 cc. volume, complete with collar and base plate Compaction Rammer is 4.5 kgs. in weight x 18" controlled fall. Face of the rammer is 2"
IS 2720 (PART-VIII)
Specification
Instrument consists one each of compaction mould steel 150 mm I.D. x 127.3mm height volume 2250cc. Complete with collar and base plate. Compaction Rammer is 4.89 kgs. in weight x 450 mm controlled fall.
Note : Instead of steel moulds, gunmetal mould are also available.
Specification
The apparatus consists one each of compaction mould steel, 152.4mmI.D. x 116.4mm height x 2124 cc. volume, complete with collar and base plate Compaction Rammer is 4.5 kgs. in weight x 18" controlled fall. Face of the rammer is 2"
IS 2720 (PART-VIII)
Specification
Instrument consists one each of compaction mould steel 150 mm I.D. x 127.3mm height volume 2250cc. Complete with collar and base plate. Compaction Rammer is 4.89 kgs. in weight x 450 mm controlled fall.
Note : Instead of steel moulds, gunmetal mould are also available.

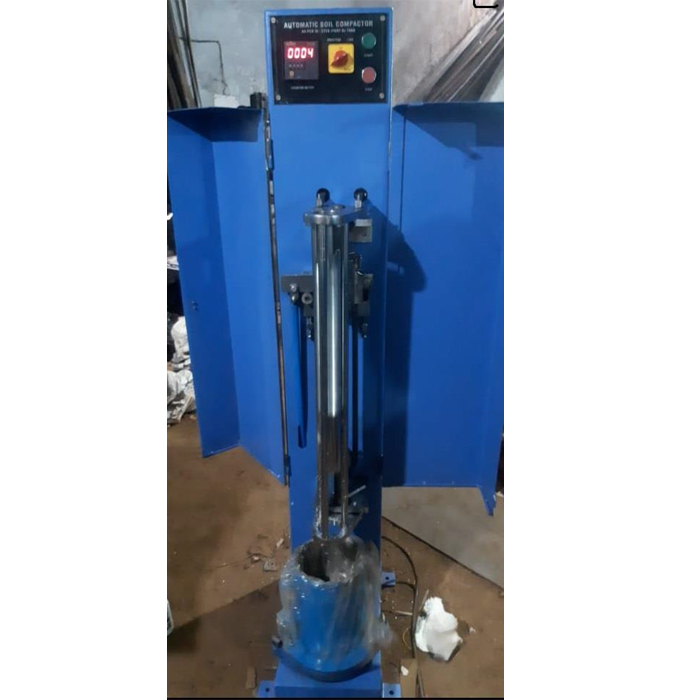

Automatic Soil Compactor
BS 1377:4
Automatic Soil Compactor BS EN Rammer the automatic soil compactors is designed to provide a fully automatic uniform compaction of standard / modified and CBR specimens assuring conformity with the reference standard.
Compactor is equipped with programmable digital counter which allows machine to stop at the preset numbers of blows. The height and weight of the rammer is adjustable to suit test requirements. The drop weight is adjustable to 300 mm drop height and is also adjustable to 450 mm drop height. The rammer is circular faced with a 50 mm diameter and is adjustable to 2.5 kg. or 4.5 kg.
An automatic blow pattern ensures effective compaction for each layer of soil and the rammer travels across the mould. The table rotates the mould in equal steps and the number of blows per layer can be set at the beginning of the test by the digital counter. User defined blow number and in-out distribution is also available. A standard proctor / CBR switch, emergency stop and start push buttons are located beside the blow counter. 220 V, 50- 60 Hz, 1 Ph
Automatic Soil Compactor BS EN Rammer the automatic soil compactors is designed to provide a fully automatic uniform compaction of standard / modified and CBR specimens assuring conformity with the reference standard.
Compactor is equipped with programmable digital counter which allows machine to stop at the preset numbers of blows. The height and weight of the rammer is adjustable to suit test requirements. The drop weight is adjustable to 300 mm drop height and is also adjustable to 450 mm drop height. The rammer is circular faced with a 50 mm diameter and is adjustable to 2.5 kg. or 4.5 kg.
An automatic blow pattern ensures effective compaction for each layer of soil and the rammer travels across the mould. The table rotates the mould in equal steps and the number of blows per layer can be set at the beginning of the test by the digital counter. User defined blow number and in-out distribution is also available. A standard proctor / CBR switch, emergency stop and start push buttons are located beside the blow counter. 220 V, 50- 60 Hz, 1 Ph
