Triaxial Test (Cell & Setup)

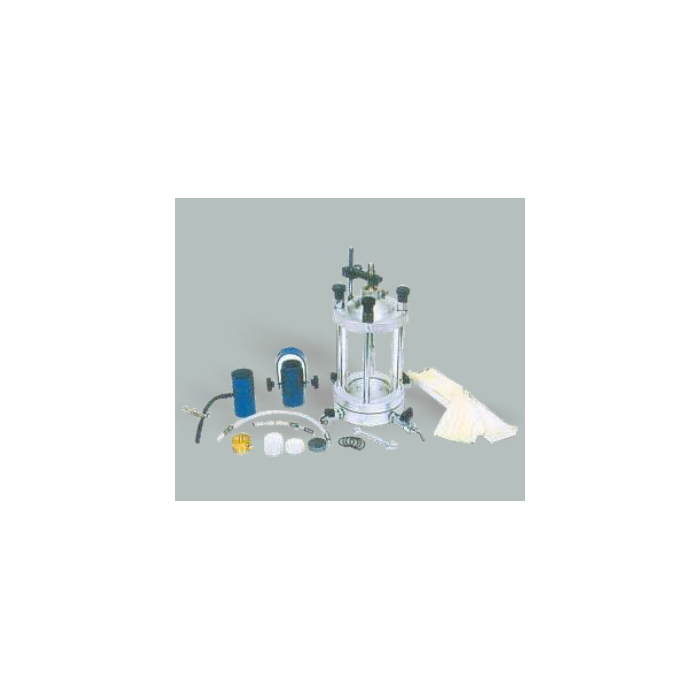

Triaxial Cell
IS 2720 (PART XII) (stationary Bushing) For 38mm Dia
Specimen
The cell is useful for testing 38mm dia x 76mm high soil specimen. Transparent Perspex chamber with anvil and loading plunger, the cell is easily opened by releasing four nuts of the tie rods. It is leak proof up to 10kg/cm.sq. Fluid pressure. An oil plug which can also be used as an air vent is provided for introducing a thin layer of oil over water. This provides effective sealing at the plunger for long duration tests. The cell is fitted with four sleeve packed valves of no volume change type on the base. These valves are used for cell pressure, pore water pressure, drainage or back pressure. The loading plunger of the cell has dial gauge rest.
The cell is useful for testing 38mm dia x 76mm high soil specimen. Transparent Perspex chamber with anvil and loading plunger, the cell is easily opened by releasing four nuts of the tie rods. It is leak proof up to 10kg/cm.sq. Fluid pressure. An oil plug which can also be used as an air vent is provided for introducing a thin layer of oil over water. This provides effective sealing at the plunger for long duration tests. The cell is fitted with four sleeve packed valves of no volume change type on the base. These valves are used for cell pressure, pore water pressure, drainage or back pressure. The loading plunger of the cell has dial gauge rest.
- Loading pad made of Perspex for 38mm dia specimens.
- Pair of plain discs made of Perspex 38mm dia 6mm thick.
- Pair of porous stones 38mm dia specimen.
- Split sand former for 38mm dia specimen.
- Sheath stretcher for 38mm dia specimen.
- One dozen rubber sheaths for 38mm dia samples.
- For synthetic rubber 'o' rings for 38mm dia specimen.
- One plastic drainage tube.

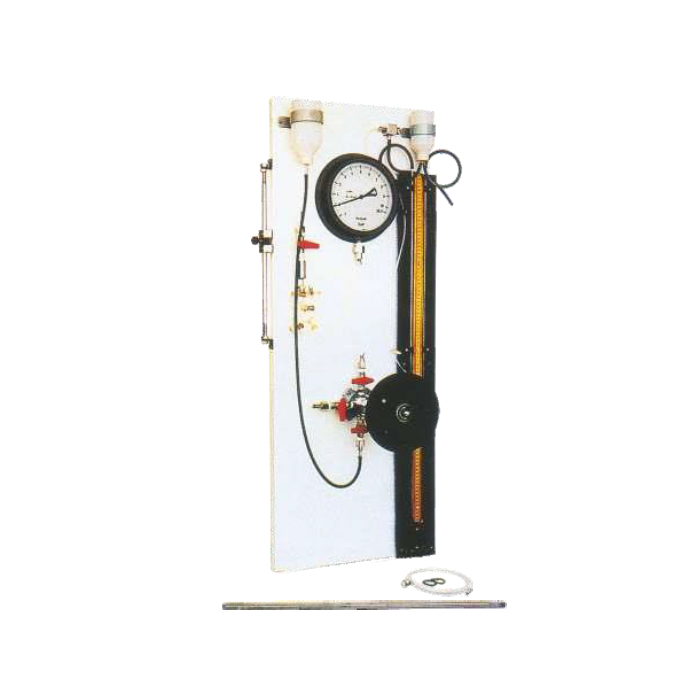

Pore Pressure Apparatus 10 KG/CM2
This apparatus is used for measuring pore water pressure and pore air
pressure in soils. This is as per the principals outlined in the book"
measurement of soil properties in triaxial tests" by A.W. BISHOP and D.J.
HENKEL. This is used as an accessories for triaxial test apparatus.
Specification
The apparatus consists of a panel for wall mounting on which are fitted 1.0 to 10kg/cm sq x 0.1kg cm. sq. a pressure gauge, bourdon tube type 15 cm dia.
Manometer: Glass u-tube manometer for measuring low positive pore pressures negative pore measures and checking zero error of pressure gauge. It is provided with a mercury trap (mercury supplied at extra cost.) Null indicator made out of clear transparent Perspex with mercury trap and cursor to indicate the mercury level. Burette: 50ml burette for measuring the volume change in the soil specimen. Pressure pump fitted with four sleeve packed valves, operated by means of a hand wheel on the end of the piston rod which is threaded through the pump cap and gives a smooth, fine adjustment of pressure.
Copper coil and water reservoir is fitted on board with complete stand assembly. The unit is tested against leaks up to 10kg/cm sq.
Specification
The apparatus consists of a panel for wall mounting on which are fitted 1.0 to 10kg/cm sq x 0.1kg cm. sq. a pressure gauge, bourdon tube type 15 cm dia.
Manometer: Glass u-tube manometer for measuring low positive pore pressures negative pore measures and checking zero error of pressure gauge. It is provided with a mercury trap (mercury supplied at extra cost.) Null indicator made out of clear transparent Perspex with mercury trap and cursor to indicate the mercury level. Burette: 50ml burette for measuring the volume change in the soil specimen. Pressure pump fitted with four sleeve packed valves, operated by means of a hand wheel on the end of the piston rod which is threaded through the pump cap and gives a smooth, fine adjustment of pressure.
Copper coil and water reservoir is fitted on board with complete stand assembly. The unit is tested against leaks up to 10kg/cm sq.
Pore Pressure Apparatus 20 Kg/Cm2
Same as model, but fitted with pressure gauge 0-20kg/cm2 x 0.2kg/cm
sq.
Spares: Polythene tube 3mm bore x 5 mm. O.D.
Spares: Polythene tube 3mm bore x 5 mm. O.D.

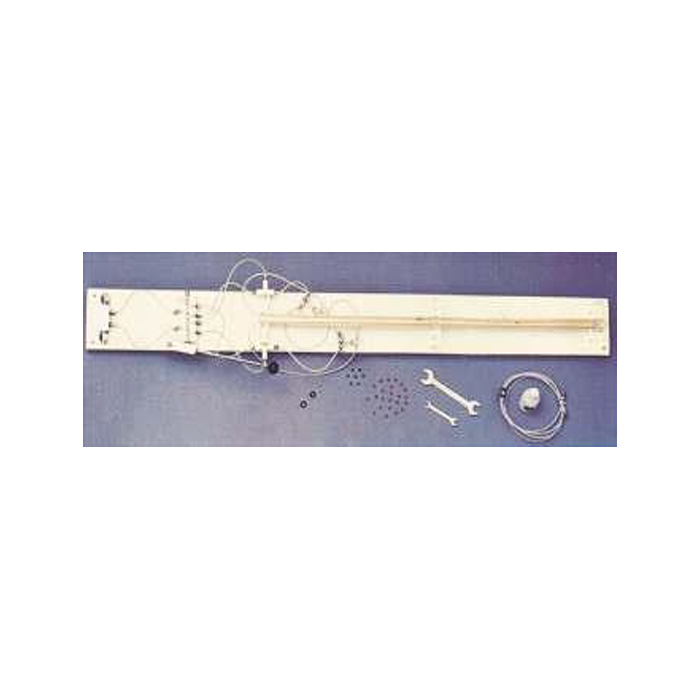

Volume Change Gauge
A Single burette, 10ml. Capacity, graduated in
0.05 ml division.
B Single burette, 25ml. capacity, graduated in 0.1ml. Division.
C Twin burette, 50ml. Capacity graduated in 0.2 ml divisions.
The unit consists of two glass graduated burettes of 50ml. 0.2ml. Capacity enclosed in two Perspex tubes sealed by two end caps.
B Single burette, 25ml. capacity, graduated in 0.1ml. Division.
C Twin burette, 50ml. Capacity graduated in 0.2 ml divisions.
The unit consists of two glass graduated burettes of 50ml. 0.2ml. Capacity enclosed in two Perspex tubes sealed by two end caps.

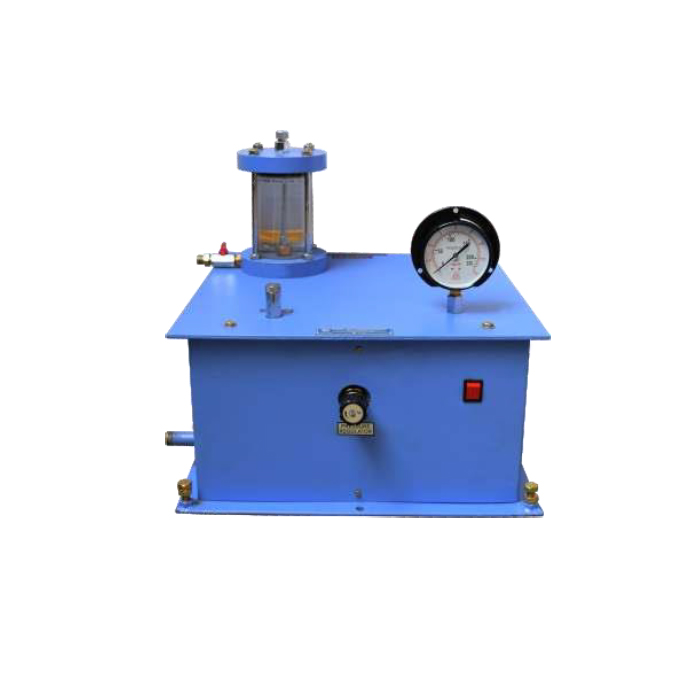

Dead Weight Type Oil & Water Constant Pressure System
This device is used to maintain cell pressure constant for a long
duration and the system can be used in place of conventional
constant pressure system using mercury pots where certain
minimum heights are required. Problems like de-airation of
pump, leakage of mercury etc. is eliminated in this system .
This unit is smaller in volume and can be used in mobile
laboratory also. This can maintain pressure in the cell upto
20kg/cm sq. Pressure is maintained constant in the
system by a balancing calibrated weights on a spindle
against a column of oil, operating under constant feed back.
Construction:
The system consists of an oil pump continuously driven by an electric motor during the test period. The internal components are housed in a strong compact housing. The piston on which weights are kept rotates with minimum friction. A transparent oil water vessel is provided to transmit pressure to the cell. A hand pump provided facilitates priming and to maintain constant pressure during power failure
Specification:
Construction:
The system consists of an oil pump continuously driven by an electric motor during the test period. The internal components are housed in a strong compact housing. The piston on which weights are kept rotates with minimum friction. A transparent oil water vessel is provided to transmit pressure to the cell. A hand pump provided facilitates priming and to maintain constant pressure during power failure
Specification:
- Range 0-20 bar(0-20kg/cm2)
- Steps of pressure 0.5bar (0.5kg/cm2)
- Accuracy + 0.5%
- Electric supply 230V, Single Phase, 50Hz, AC supply.

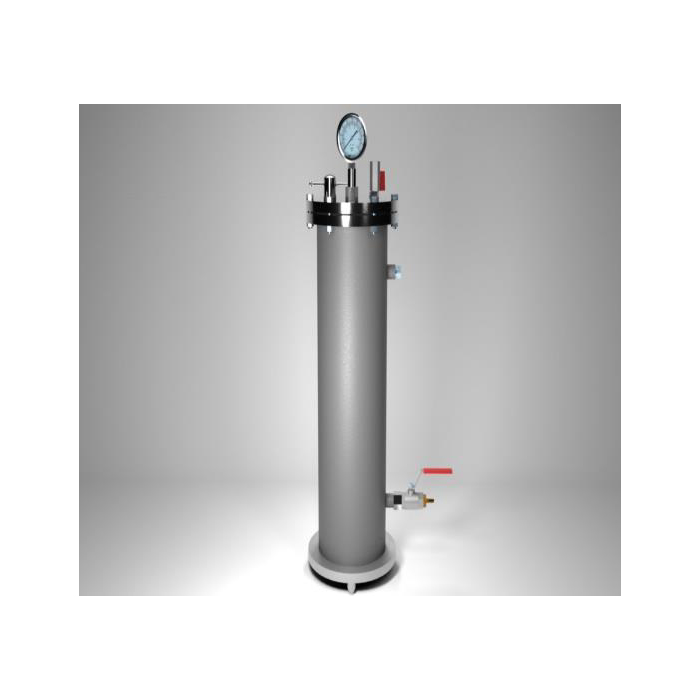

Lateral Pressure Assembly 10kg / Cm2
It is designed for application of cell pressure upto 10kg/cm2
on a triaxial specimen in the triaxial cell. The unit is mostly used in routine tests which last for about 10 to 15
minutes wherein the variations of cell pressure can be tolerated.
Specification :
The apparatus consists of a pressure chamber which has a flanged top cap fitted with a 10 kg/cm2. Pressure gauge and a valve for pumping in air. Water inlet and drain cock are fitted to the chamber.
The foot pump supplied easily develops a pressure of 10 kg/cm2 Complete with connecting pressure hose. Note: Also available 20Kg/cm 2
Specification :
The apparatus consists of a pressure chamber which has a flanged top cap fitted with a 10 kg/cm2. Pressure gauge and a valve for pumping in air. Water inlet and drain cock are fitted to the chamber.
The foot pump supplied easily develops a pressure of 10 kg/cm2 Complete with connecting pressure hose. Note: Also available 20Kg/cm 2

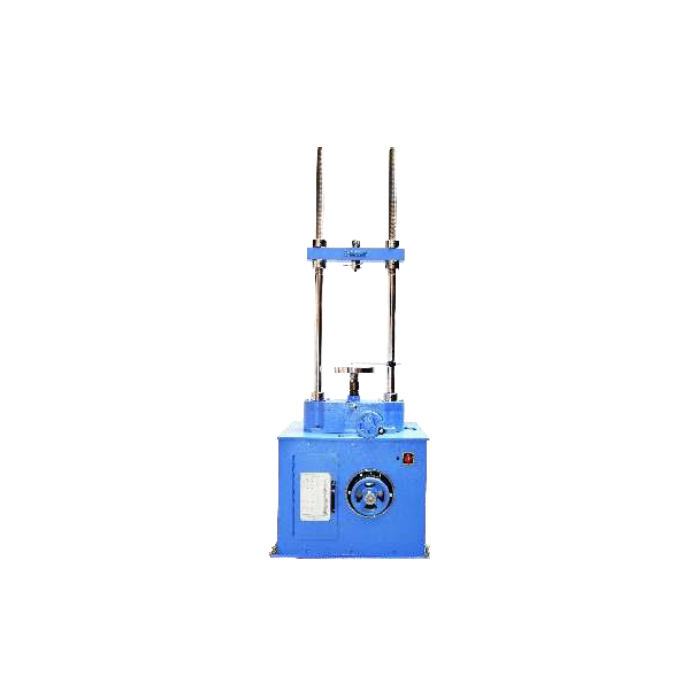

Load Frame, Motorised, 30 Speeds
Features:
Rates of Strain: 30 fixed speeds between 0.00048 mm/min and 6.00 mm/min. Suitable for operation on 220 V, 50 Hz, single phase, AC supply.
- Two pillar type
- Detachable Frame
- Enclosed motor and gear system
- Jewel lamps indicating direction of motion
- Operational ease
- Useful for Triaxial and CBR Tests
Rates of Strain: 30 fixed speeds between 0.00048 mm/min and 6.00 mm/min. Suitable for operation on 220 V, 50 Hz, single phase, AC supply.
