Surface Regularity

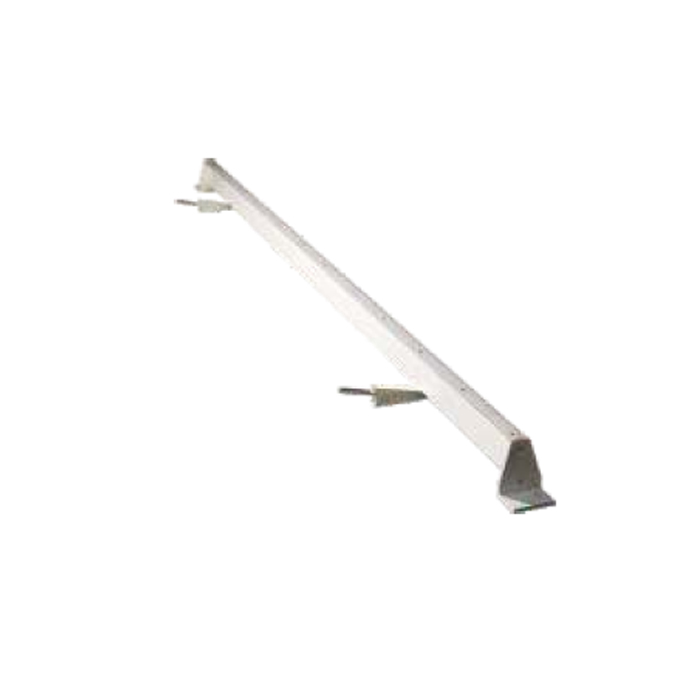

Straight Edge (3 Meters)
A straight edge approximately 3 meters in length may be used to determine lateral surface regularity of a road surface. This lightweight apparatus is made up of mild steel or aluminum as per customers requirement and is equally supported at both ends producing a set height between the road surface & the beam. Any vertical irregularity is measured using incremented wedges.

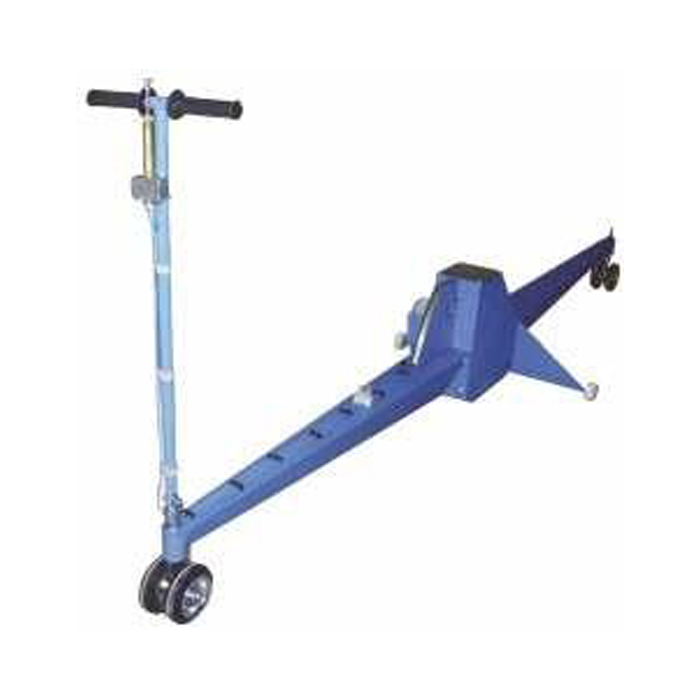

Travelling Beam Device
The Travelling Beam Device is used to check for any irregularities in both concrete and bituminous road surfaces. A sensing unit comprising a wheel connected to an indicator provides a magnification of 4:1. Deviation of the surface from a straight-line is shown on a scale calibrated in increments of 2 mm in the 0-10 mm range and 5 mm increments in the 10-25 mm range. It comprises a manual dye marker which is used to mark irregular surface sections when found.
