Moulding Equipment

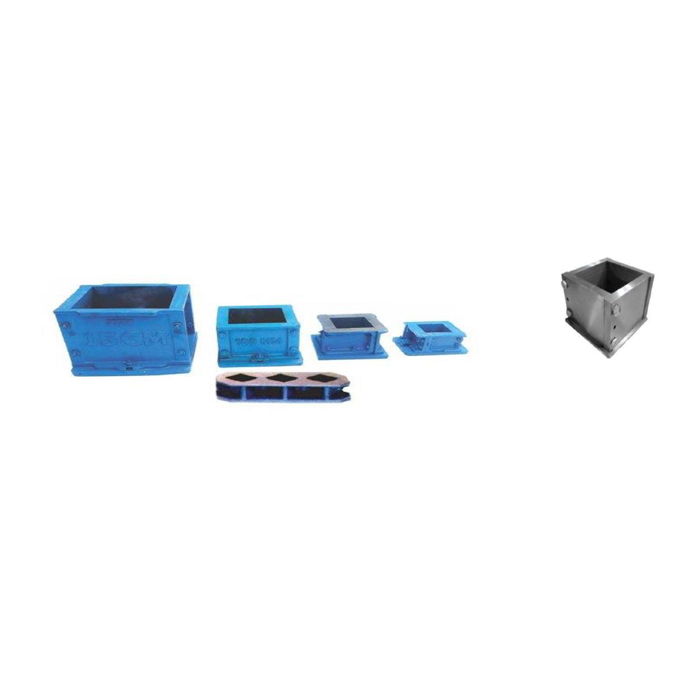

Cube Mould (Metal)
These are available in different sizes and are made according to Indian and British standards . For the metric size cube mould, the faces are machined flat to +/-0.2mm accuracy and finished to within 0.2mm. For the inch size moulds, the faces are machined flat to +/-0.01 inched to within 0.01in. All moulds are supplied complete with base plate.
A. Cast Iron Mortar Cube Mould 50mm, Single Gang
B. Cast Iron Mortar Cube Mould 50mm, Three Gang
C. Mild Steel Cement Cube Mould 70.6mm, with Loose Base Plate
D. Cast Iron Concrete Mould 75mm Single Gang
E. Cast Iron Concrete Mould 100mm Light Weight
F. Cast Iron Concrete Mould 100mm Clamp Type (8.5 KG) Four Part
G. Cast Iron Concrete Mould 150mm Light Weight 8KG
H. Cast Iron Concrete Mould 150mm ISI Marked
I. Cast Iron Concrete Mould 150mm Clamp Type (18 KG) Four Part
J. Cast Iron Concrete Mould 150mm Clamp Type (16 KG) Two Part
A. Cast Iron Mortar Cube Mould 50mm, Single Gang
B. Cast Iron Mortar Cube Mould 50mm, Three Gang
C. Mild Steel Cement Cube Mould 70.6mm, with Loose Base Plate
D. Cast Iron Concrete Mould 75mm Single Gang
E. Cast Iron Concrete Mould 100mm Light Weight
F. Cast Iron Concrete Mould 100mm Clamp Type (8.5 KG) Four Part
G. Cast Iron Concrete Mould 150mm Light Weight 8KG
H. Cast Iron Concrete Mould 150mm ISI Marked
I. Cast Iron Concrete Mould 150mm Clamp Type (18 KG) Four Part
J. Cast Iron Concrete Mould 150mm Clamp Type (16 KG) Two Part

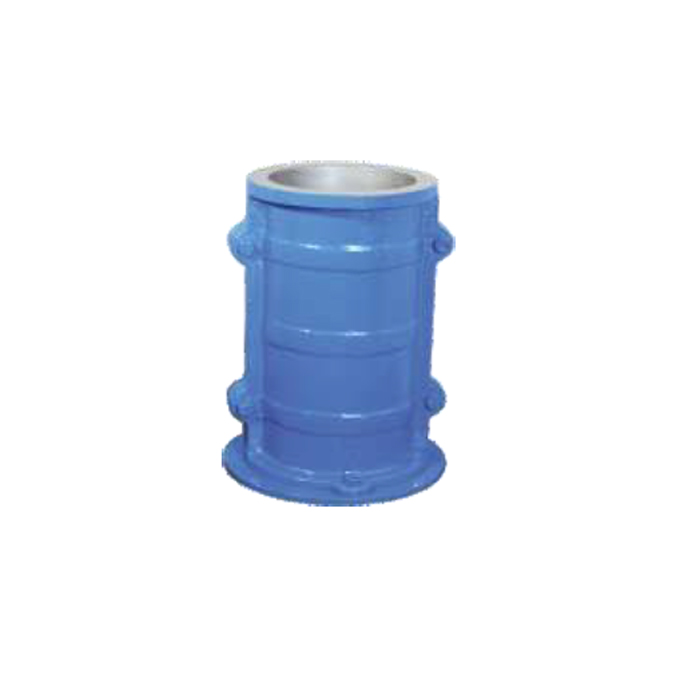

Cylindrical Mould
For testing concrete cylinders for compressive strength tests.
Specification:
The moulds is split vertically into two parts. The mean internal diameter in within +/-0.2mm and height is within +/-1mm. The ends are machined to +/-0.05 . The base plate and top plate are machined flat to +/-0.03mm.
Specification:
The moulds is split vertically into two parts. The mean internal diameter in within +/-0.2mm and height is within +/-1mm. The ends are machined to +/-0.05 . The base plate and top plate are machined flat to +/-0.03mm.
- Mould cylinder, cast iron, 150mm dia x 150mm height.
- Mould cylinder, cast iron, 150mm dia x 300mm height.
- Mould cylinder, cast iron, 160mm dia x 320mm height.
- Mould cylinder, cast iron, 100mm dia x 200mm height.
- Mould cylinder, cast iron, 300mm dia x 600mm height.

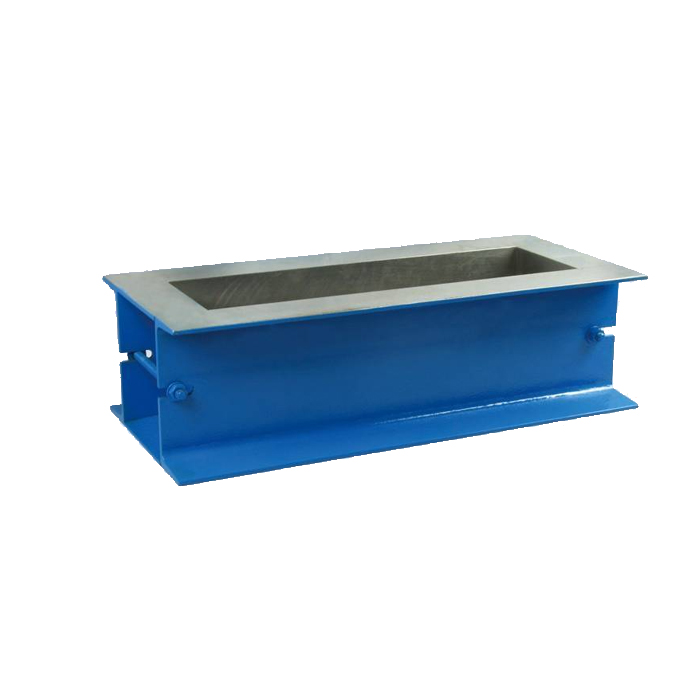

Beam Mould
BS 1881-108
For casting, concrete specimen for flexure tests.
Specification:
Made of Cast Iron / Mild Steel. The mould are made of 4 plates assembled together. Each mould is supplied complete with base plate. Faces are machined flat to ±0.2mm. And finished in size to 0.2mm.
For casting, concrete specimen for flexure tests.
Specification:
Made of Cast Iron / Mild Steel. The mould are made of 4 plates assembled together. Each mould is supplied complete with base plate. Faces are machined flat to ±0.2mm. And finished in size to 0.2mm.

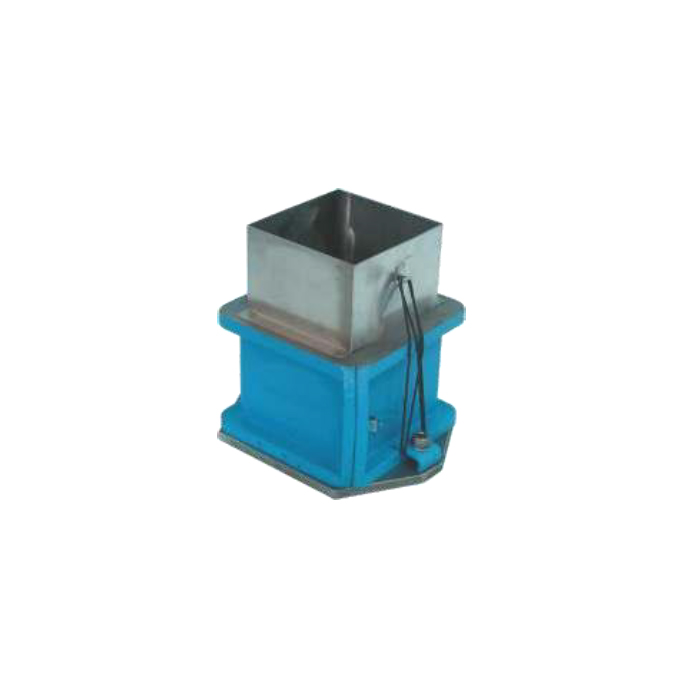

Filling Hopper For Mould
Filling hopper, stainless steel made, for an easier filling of fresh concrete into the moulds:
Supplied complete of clamping elastics
