Coring & Cutting

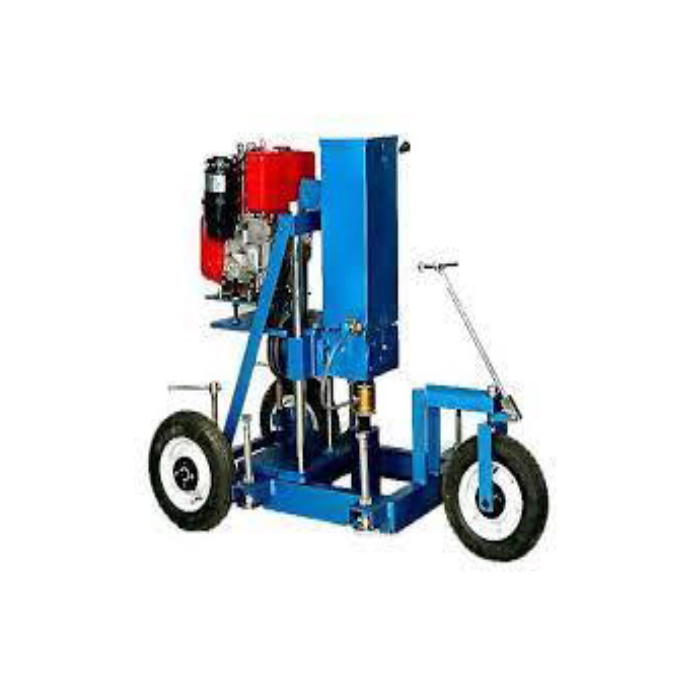

Core Cutting / Core Drilling Machine (Petrol)
Specification
Suitable to cut/drill cores of concrete, rocks, stones, tiles or the similar materials. The machine is suitable for core samples of size upto 150 mm diameter with the help of thin walled diamond bits which are at extra cost. The machine has sturdy base with pillar support in which rack and pinion is provided for adjustment in height and penetration assembly. The leveling screws are provided at the base. For gripping the sample in position suitable grips are provided. A suitable petrol engine is fitted in the machine with cooling arrangement with water. The base frame is also fitted with wheels for ease of transportation.
Suitable to cut/drill cores of concrete, rocks, stones, tiles or the similar materials. The machine is suitable for core samples of size upto 150 mm diameter with the help of thin walled diamond bits which are at extra cost. The machine has sturdy base with pillar support in which rack and pinion is provided for adjustment in height and penetration assembly. The leveling screws are provided at the base. For gripping the sample in position suitable grips are provided. A suitable petrol engine is fitted in the machine with cooling arrangement with water. The base frame is also fitted with wheels for ease of transportation.

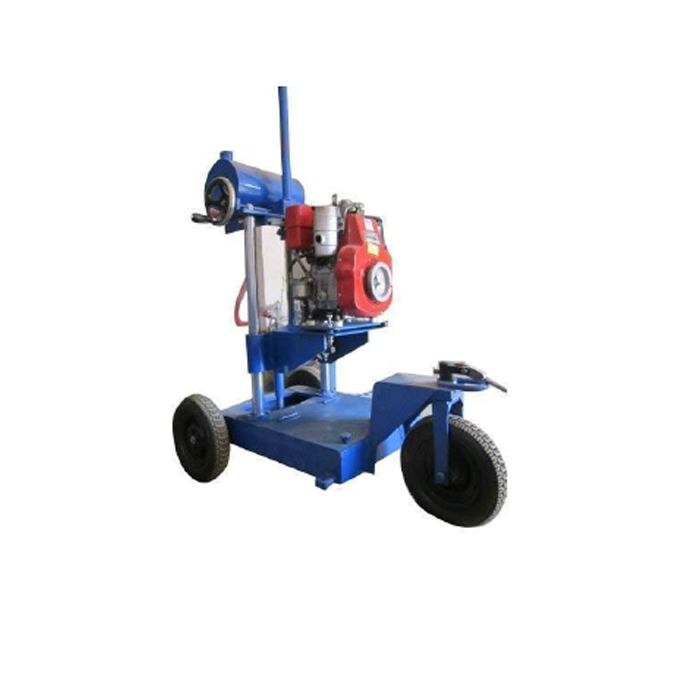

Portable Core Cutting Drilling Machine Petrol Driven
EN 12697-27
Compact and portable Entek core drilling machine is designed to cut cores up to 200 mm diameter from concrete, asphalt and similar hard construction materials. The machine comprises a vertical support column which carries the drill head/motor assembly. The motor assembly comprises a 6.5 hp petrol engine. A ball screw mechanism enables close control of the drilling pressure and rapid return when drilling is completed. A water spraying assembly is mounted on the machine. The complete assembly is supplied on a rigid wheel mounted metal base frame with leveling and fixing facility during the operation.
Compact and portable Entek core drilling machine is designed to cut cores up to 200 mm diameter from concrete, asphalt and similar hard construction materials. The machine comprises a vertical support column which carries the drill head/motor assembly. The motor assembly comprises a 6.5 hp petrol engine. A ball screw mechanism enables close control of the drilling pressure and rapid return when drilling is completed. A water spraying assembly is mounted on the machine. The complete assembly is supplied on a rigid wheel mounted metal base frame with leveling and fixing facility during the operation.

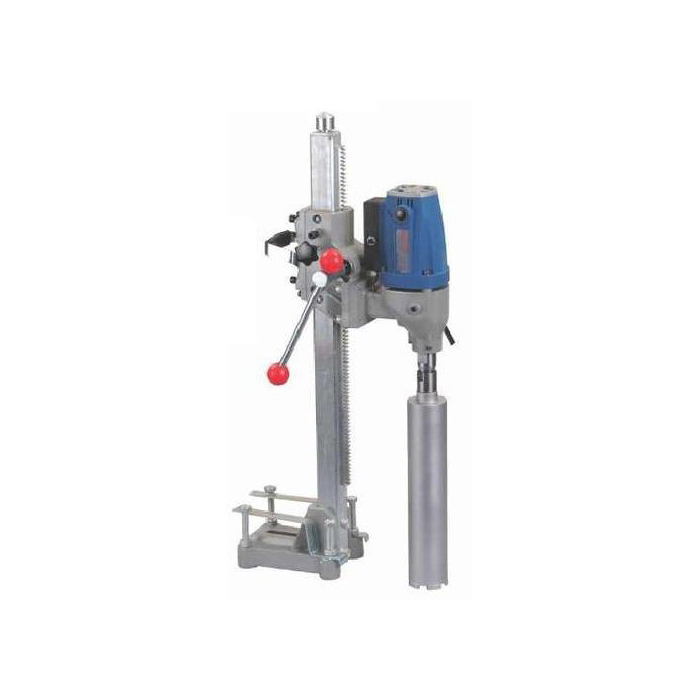

Core Cutting / Core Drilling Machine (Motorised)
Specification
Specification
- Rated Voltage: ~220 V / 50Hz
- Power Input: 2800W
- No-Load Speed: 840rpm
- Max. bit diameter: ø50mm/100mm/150mm
- Shaft Male: 1 1/4"UNC
Specification
- Compact size with light weight as well as safety in operation
- The drills are equipped with a friction clutch as well as over load current protection for protecting motor
- High-strength gear to keep the drill working long hours constantly
- Excellent speed, smooth and stability during drilling
- Out setting water swivel seal facilitate making replacement when the seal worn out

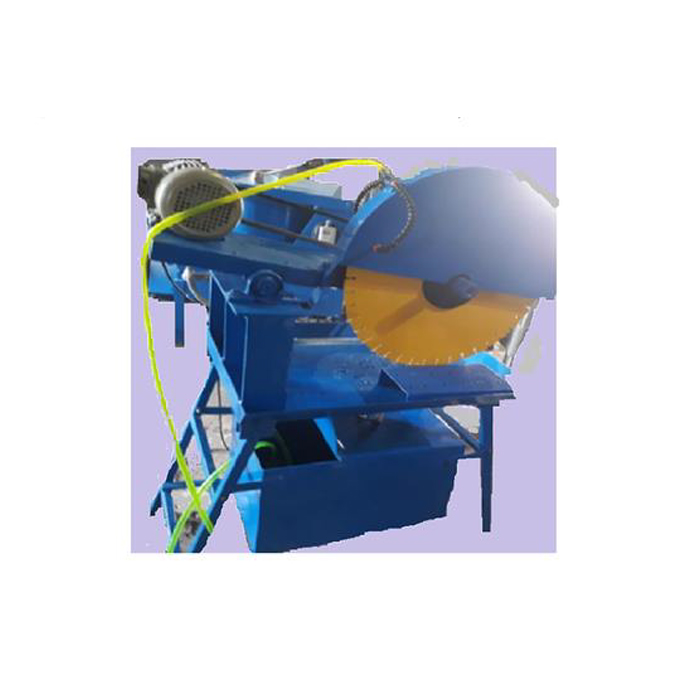

Rock/Concrete Cutting Machine
EN 12390:3, ASTM C42
For people who work with stone, brick, large tiles or blocks, it goes without saying that precision is crucial to the end result. But the efficiency of the machine should never compromise the need for good ergonomics and a reasonable workload. Put simply, the stone or tile you cut must fit perfectly, just as the machine and the blade you use must fit your work situation perfectly. Universal table saw with a unique super-stable height adjustment device, lockable in any position. max. cutting depth in top position is 230 mm, by turning the material over.
For people who work with stone, brick, large tiles or blocks, it goes without saying that precision is crucial to the end result. But the efficiency of the machine should never compromise the need for good ergonomics and a reasonable workload. Put simply, the stone or tile you cut must fit perfectly, just as the machine and the blade you use must fit your work situation perfectly. Universal table saw with a unique super-stable height adjustment device, lockable in any position. max. cutting depth in top position is 230 mm, by turning the material over.

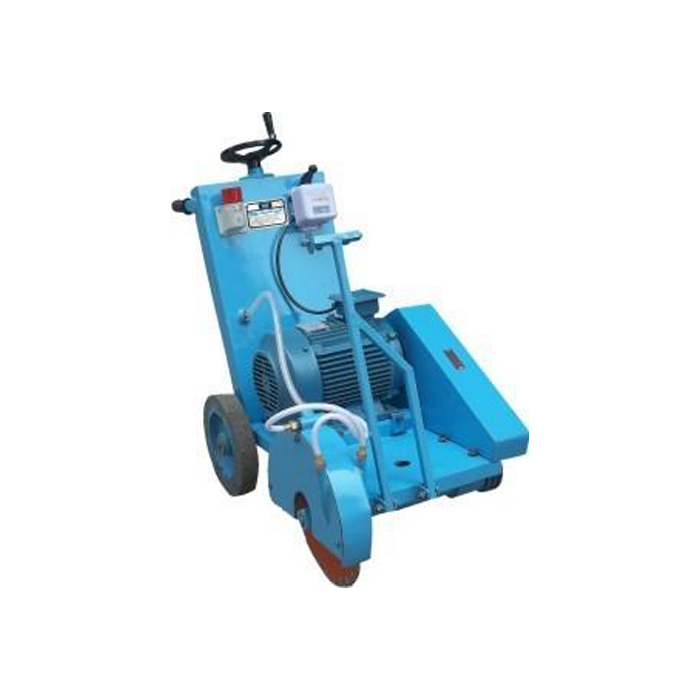

Asphalt & Concrete Floor Saw
Driven by electrical motor or by engine as per customers
requirement. Diamond blade from 350 to 500 mm maximum can be
supplied as per requirement. The trolley in which the engine is fitted is
supplied with cooling arrangements with the help of a water tank.
Arrangements to control the depth is also provided. A safety guard is also
provided on the diamond blade. Two wheels are provided for easy
movability of the machine.
