Concrete Compaction

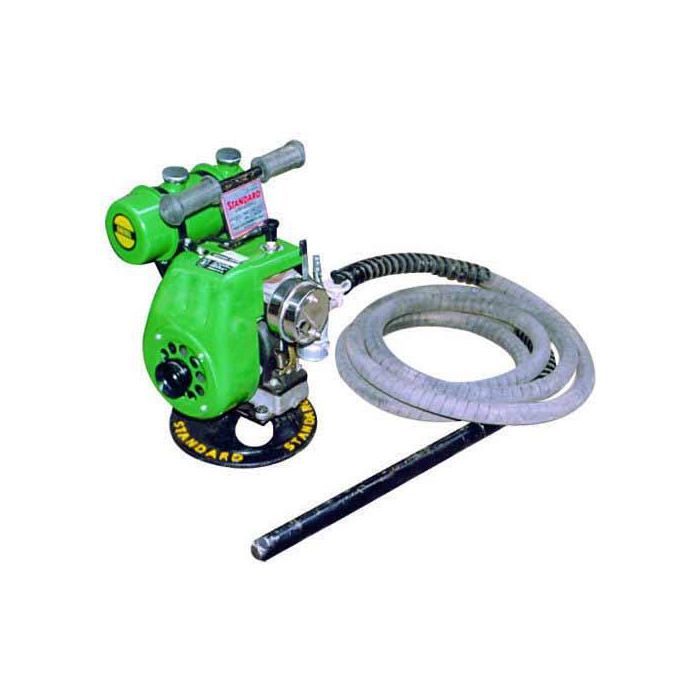

Poker Vibrator (With Vibrating Table)
EN 12390-2; ASTM C31, C192; AASHTO T23, T126
Ø22 mm hand-held, 220-240 V 50-60 hz
The poker vibrator is ideal for the internal compaction of concrete specimens and a good alternative to traditional tamping bar, especially when there are large numbers of specimens to be compacted. Flexible shaft length and tip diameter can be selected from the four available products.
Ø22 mm hand-held, 220-240 V 50-60 hz
The poker vibrator is ideal for the internal compaction of concrete specimens and a good alternative to traditional tamping bar, especially when there are large numbers of specimens to be compacted. Flexible shaft length and tip diameter can be selected from the four available products.

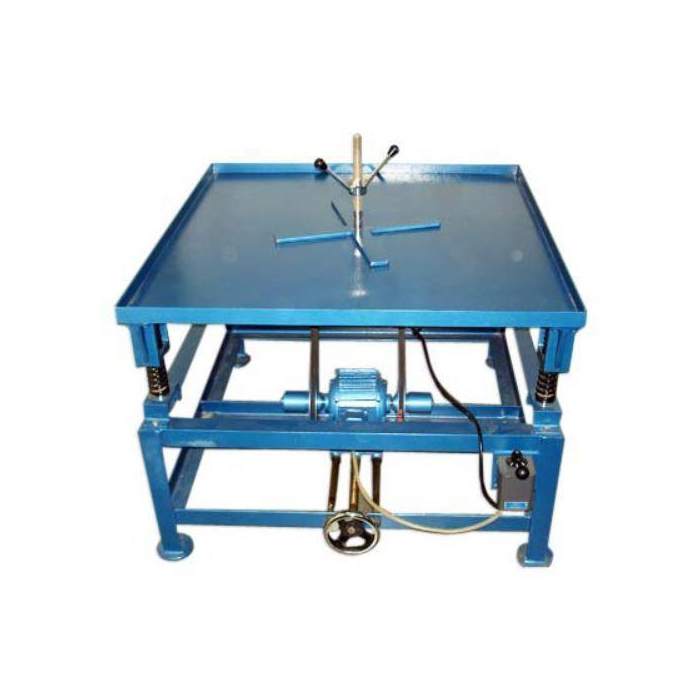

Vibrating Table
Specification
It is designed to carry a load of 140 kg . The apparatus consists of a motor fitted with a variable pitch pulley housed in a cabinet. The vibrations are imparted by means off-balance masses rotating on a shaft of a vibrator clamped to the underside of the table top. The table top is 500 x 500 mm and has stops along its edges to prevent moulds from walking off the table during vibration . A crass arm adjustable on a vertical rod at the centre of the table is provided to hold the moulds while operating the between a maximum of 3600 vibrations down to 2600 vibration per minute. A speed regulation handle is provided for increasing or decreasing frequency. A switch is provided for starting the motor. Suitable for operator on 230 Volts, A.C. Single Phase, 50 Cycles.
Note: Table top size : 750 x 750 mm & 1000 x 1000 mm also available at an extra cost. Both models operates on 440 volts, A.C. Three Phase
It is designed to carry a load of 140 kg . The apparatus consists of a motor fitted with a variable pitch pulley housed in a cabinet. The vibrations are imparted by means off-balance masses rotating on a shaft of a vibrator clamped to the underside of the table top. The table top is 500 x 500 mm and has stops along its edges to prevent moulds from walking off the table during vibration . A crass arm adjustable on a vertical rod at the centre of the table is provided to hold the moulds while operating the between a maximum of 3600 vibrations down to 2600 vibration per minute. A speed regulation handle is provided for increasing or decreasing frequency. A switch is provided for starting the motor. Suitable for operator on 230 Volts, A.C. Single Phase, 50 Cycles.
Note: Table top size : 750 x 750 mm & 1000 x 1000 mm also available at an extra cost. Both models operates on 440 volts, A.C. Three Phase

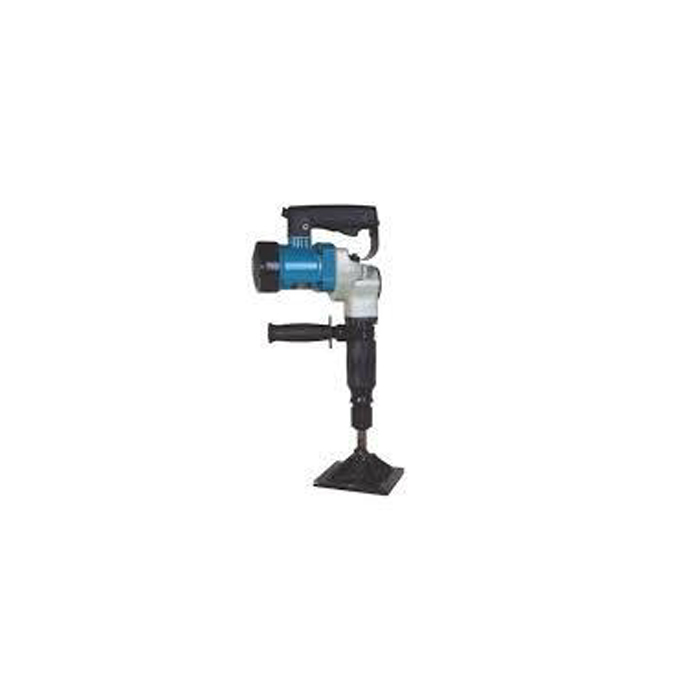

DLC Vibrating Hammer For Concrete Moulds
ASTM C 232; EN 480-4
Used for the compaction of concrete samples in a mould. Generally the vibratory hammer is found to be a much faster & quicker method as compared to impact hammering. The vibratory hammers are supplied with 1 tamping feet & 1 shank. Used for determination of the relative quantity of mixing water that will bleed from a sample of freshly mixed concrete.
Used for the compaction of concrete samples in a mould. Generally the vibratory hammer is found to be a much faster & quicker method as compared to impact hammering. The vibratory hammers are supplied with 1 tamping feet & 1 shank. Used for determination of the relative quantity of mixing water that will bleed from a sample of freshly mixed concrete.
- Dimensions : 290 x 255 x 350 mm
- Weight (approx.) : 6 kg
