Soil Testing Equipment

We are a trusted Indian trader of precisely fabricated range of soil testing equipment. Conforming to international standard, the range includes core cutter, rapid moisture meter, sand pouring cylinder, shrinkage limit set, permeability apparatus, piston sampler, plastic limit set and many more. These testing equipment are offered at competitive prices and we also assist our clients to choose the right kind of equipment that will best suite the need. Please feel free to communicate with us for further details.


Test Sieves
Test sieves is a common laboratory requirement. Sieves are used for sieving of chemical powders, medical powders, aggregate, sand soil and cement etc. These sieves are manufactured as per various standards like ISS, BSS, ASTM, DIN etc. Sieves are commonly used for gradation and particle size determination. these are mainly made of brass frame and g. I. Frame of dia. 200mm, 300mm & 450mm.

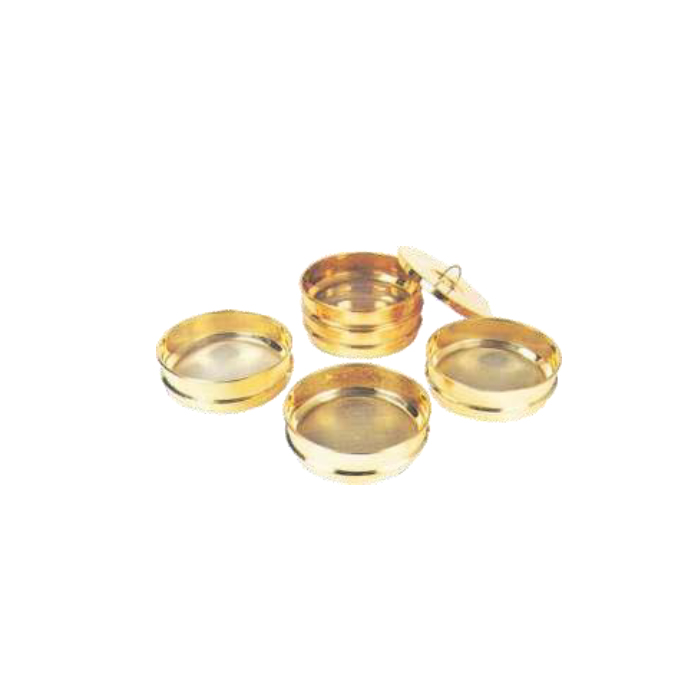

Brass Frame Sieves
  • Construction :
    The frame is made out of spun brass and without any joint in it. A clean rigid design of minimum weight and free from corners where the material could be lodged. Uniform fabrications of our sieves permit easy and smooth nesting on each others and also with lid and receivers. Imported stainless steel 18/8 quality or Phosphor Bronze standard sieve cloth is used for batter performance and lasting. An essential feature of test sieves is that the mesh should be flat, taut and uniform and with permanent tension round the whole circumference. Micro Test Sieves are available in one piece frame of 4" diameter and also available in sizes of 1-1/2", 3", 5" and 6" diameter with suitable lid and receiver.(as per below table) Coares Test Sieves of 8", 12" and 18" diameter are available with perforated plates with round or square holes size No. 4.75 to 100 mm. Meshes in mm - 125, 106, 100, 90, 80, 80, 75, 63, 53, 50, 45, 40, 37.5, 31.5, 26.5, 25, 22.4, 20, 19, 16, 13.2, 12.5, 11.2, 10, 9.5, 8, 6.7, 6.3, 5.6, 4.75, 2.36, 1.18 mm

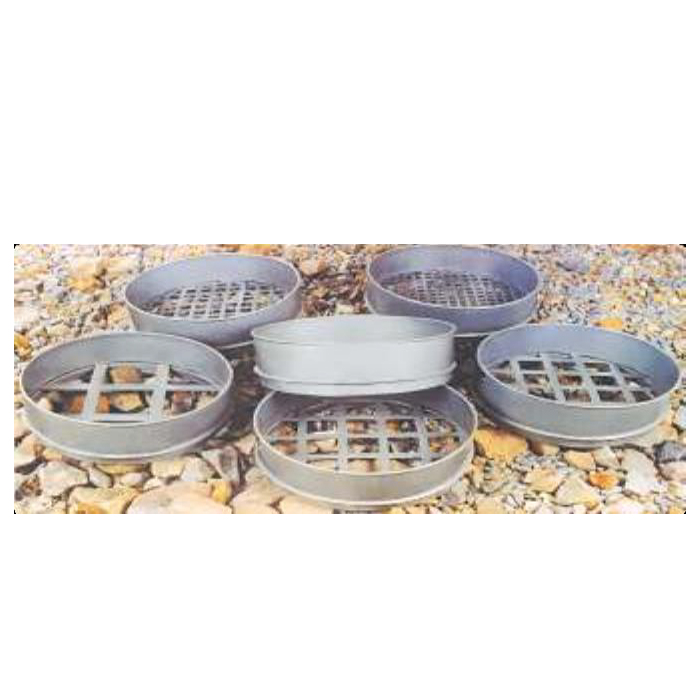

G.I. Frame Sieves
These are used for sieve analysis of coarse aggregate in various laboratories and test environments wherein the most demanding accuracy is required. It has a clear rigid design of minimum weight and free from corners where the material could be lodged.
Coarse Series : Test Sieves available in 30 cm dia & 45 cm dia made of G.I. frame in coarse series. Mesh in mm - 125, 106, 100, 90, 80, 75, 63, 53, 50, 45, 40, 37.5, 31.5, 26.5, 25, 22.4, 20, 19, 16, 13.2, 12.5, 11.2, 10,9.5, 8, 6.7, 6.3, 5.6, 4.75, 2.36,1.18mm





S.S. Frame Sieves
Test sieve SS)are made from high-grade material and widely used in laboratories for calculating specific sizes of powders and various other materials. Test sieve (ss)are available in numerous sizes at competitive rates.
B.S.S ASTM ISS MICRONS MM
4 4 480 - 4.75
5 6 340 2812 3.35
6 7 280 2411 2.80
7 8 240 2207 2.36
8 10 200 2057 2.00
10 12 170 1698 1.70
12 14 140 1400 1.40
14 16 120 1200 1.18
16 18 100 1000 1.00
18 20 85 850 0.850
22 25 70 700 0.710
25 30 60 600 0.600
30 35 50 500 0.500
36 40 40 425 0.425
44 45 35 355 0.355
52 50 30 300 0.300
60 60 25 250 0.250
72 70 20 212 0.212
85 80 18 180 0.180
100 100 15 150 0.150
120 120 12 125 0.125
150 140 10 106 0.106
170 170 9 90 0.090
200 200 8 75 0.075
240 230 6 63 0.063
300 270 5 53 0.053
350 325 4 45 0.045
