Soil Testing Equipment

We are a trusted Indian trader of precisely fabricated range of soil testing equipment. Conforming to international standard, the range includes core cutter, rapid moisture meter, sand pouring cylinder, shrinkage limit set, permeability apparatus, piston sampler, plastic limit set and many more. These testing equipment are offered at competitive prices and we also assist our clients to choose the right kind of equipment that will best suite the need. Please feel free to communicate with us for further details.

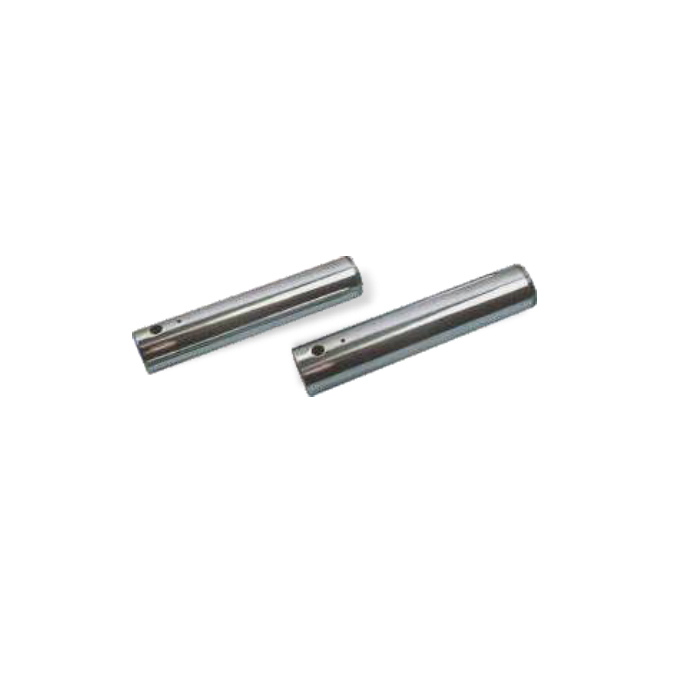

Sampling Tubes
For collecting undisturbed samples of 38 mm dia for Triaxial Shear strength and Unconfined Compressive strength either straight from the field or from a sample of larger diameter. The wall thickness is maintained approximately 1. 6 mm with an area ratio approximately 17 per cent. Both relieved and unrelieved sampling tubes are available. In the relieved type of tube, the internal diameter is relieved by about 0. 5 mm (inside clearance 2%) beyond approx. 19 mm length from the cutting edge of the tube. This is most suitable for highly cohesive soils. In the unrelieved type, the internal diameter is uniform through out. This type is most suitable for soils of low cohesion. These 38 mm dia tubes are available in different lengths.
Salient Features
  • Unrelieved : (a) 150 mm (b) 200 mm (c) 225 mm (d) 300 mm long.
  • Relieved : (a) 150 mm (b) 200 mm (c) 225 mm (d) 300 mm long.
