Cement Compression / Flexure

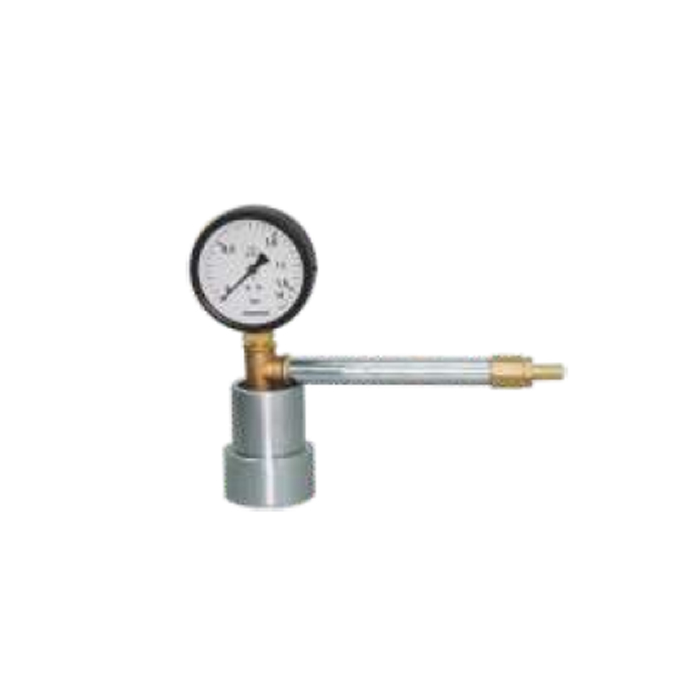

Wet Sieving Apparatus
EN 451-2
The wet sieving apparatus is used for determining the fineness of fly ash. The apparatus comprises of a special stainless steel sieve, 0.045 mm opening, a spray nozzle Ø 17.5 mm with 17 holes Ø 0.5 mm oriented and spaced to conform to the standards. Supplied complete with a pressure gauge Ø 80 mm and fittings for connection to the water supply.
The wet sieving apparatus is used for determining the fineness of fly ash. The apparatus comprises of a special stainless steel sieve, 0.045 mm opening, a spray nozzle Ø 17.5 mm with 17 holes Ø 0.5 mm oriented and spaced to conform to the standards. Supplied complete with a pressure gauge Ø 80 mm and fittings for connection to the water supply.

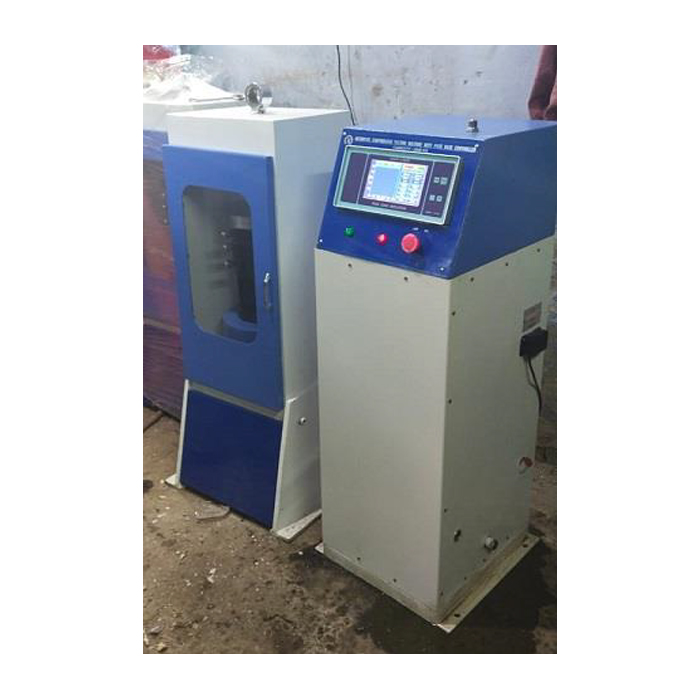

Automatic Cement Compression & Flexure Testing Machines
EN 196-1, 459-2, 1015-11, 13454-2; ASTM C109, C348, C349; BS 3892-1, 4551-1
The Automatic range of single testing chamber and double testing chamber compression and flexure testing machines have been designed for reliable and consistent testing of mortar samples. These compression and flexure testers are the results of continuous applications and research studies to upgrade the machines with the latest technologies and conform the current standards in terms of its technical properties taking into account client requirements by using suitable accessories. These machines also meet the requirements of CE norms for safety and health of the operator.
Compression and flexture jigs, distance pieces, and also removable transparent front-rear safety doors (should be factory installed) should be ordered separately. The automatic cement compression and flexure testing machines allow less experienced operators to perform the tests. Once the machine has been switched on and the specimen is positioned and centered by the help of centering apparatus. The automatic cement compression and flexure testing machines consist of very rigid two column single or double chamber frames, automatic hydraulic power pack with data acquisition and control system.
The Automatic range of single testing chamber and double testing chamber compression and flexure testing machines have been designed for reliable and consistent testing of mortar samples. These compression and flexure testers are the results of continuous applications and research studies to upgrade the machines with the latest technologies and conform the current standards in terms of its technical properties taking into account client requirements by using suitable accessories. These machines also meet the requirements of CE norms for safety and health of the operator.
Compression and flexture jigs, distance pieces, and also removable transparent front-rear safety doors (should be factory installed) should be ordered separately. The automatic cement compression and flexure testing machines allow less experienced operators to perform the tests. Once the machine has been switched on and the specimen is positioned and centered by the help of centering apparatus. The automatic cement compression and flexure testing machines consist of very rigid two column single or double chamber frames, automatic hydraulic power pack with data acquisition and control system.
Oil Tank
The tank includes enough oil to fill the mechanism which pushes the ram during the test. The level and oil temperature can be seen on the indicator fitted to the tank. It has 20 L capacity. Hydraulic motor oil, number 46, must be used.
- Dimensions : 360 x 380 x 900 mm
- Weight (approx.) : 80 kg
- Power : 750 W
